    Shaftless 3 Ply Automatic Corrugated Box Plant 100m/Min~250m/Min

    Ask Lasest Price
    Brand Name : WU-01
    Model Number : 201-01
    Certification : ISO9001
    Price : 14000 usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1 set in workshop
    Delivery Time : 45 days
    • Product Details
    • Company Profile

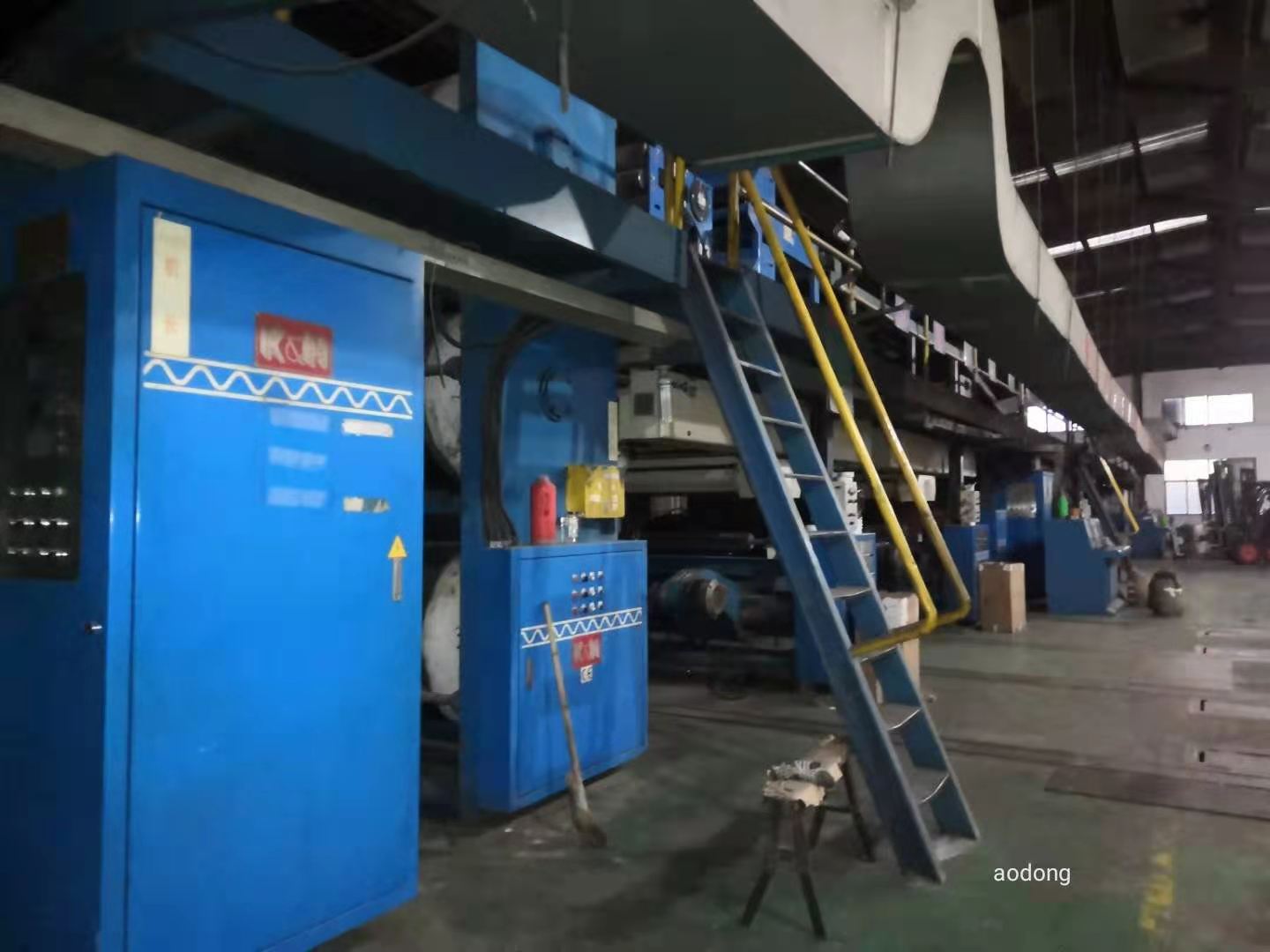

    Shaftless 3 Ply Automatic Corrugated Box Plant 100m/Min~250m/Min

    Hot Sale 3 Ply Corrugated Board Production Line For Carton Packing Machinery


    Speed:100~250m/min
    Width:From 1400~2500mm
    No.
    Machine name
    Qty
    Width:From 1400~2500mm
    1
    Mill roll stand
    3
    Remarks
    2
    Railing and track
    6
    Full hydraulic control, pneumatic control brake, common chuck, hydraulic station made in China.
    3
    Pre-heater
    1
    Include railing and track.
    4
    Single facer
    1
    Diameter 900mm, electric adjust wrapping angle
    5
    Pre-conditioner
    1
    Corrugating roll diameter 320mm, adopt 48CrMo alloy steel, main bearing adopt Japan NSK brand, gluing part could move out the machine, easy maintenance and clean
    6
    Single layer bridge conveyor
    1
    Diameter 900mm, electric adjust wrapping angle
    7
    Double layer pre-heater
    1
    Frequency adjust wind adsorption, electric correct error
    8
    Gluing machine
    1
    Diameter 900mm, electric adjust wrapping angle
    9
    Double facer
    1
    Gluing roll diameter 318mm, main bearing adopt NSK brand
    10
    Main driver
    1
    Heating plants 600mm¡Á15set, surface do treated, pneumatic tension, hydraulic lift-down, include cotton belt
    11
    Slitter scorer
    1
    Independent reducer box, gimbal driving, diameter of driving roll 768mm
    12
    NC cutoff
    1
    4 blades 6 scorers
    13
    Stacker
    1
    Import driving part, cutting precision 1mm in steady speed.
    14
    Glue making system
    1
    Belt transfer the carton sheets, max stack height 1.5m
    15
    Pneumatic system
    1
    Include main pot 1 set, carrier pot 1 set, and storage pot 1set, include glue station pump, single facer glue pump and gluing machine glue pump. Circle supply glue, pipeline provided by customer
    16
    Electric system
    1
    Include steam-water separator and gas storage pot, pipeline and air-compressor supply by customer.
    17
    Steam system
    1
    electric part adopt ABB or Schneider product, Motor and reducer adopts Taiwan Teco product, imported transducer.
