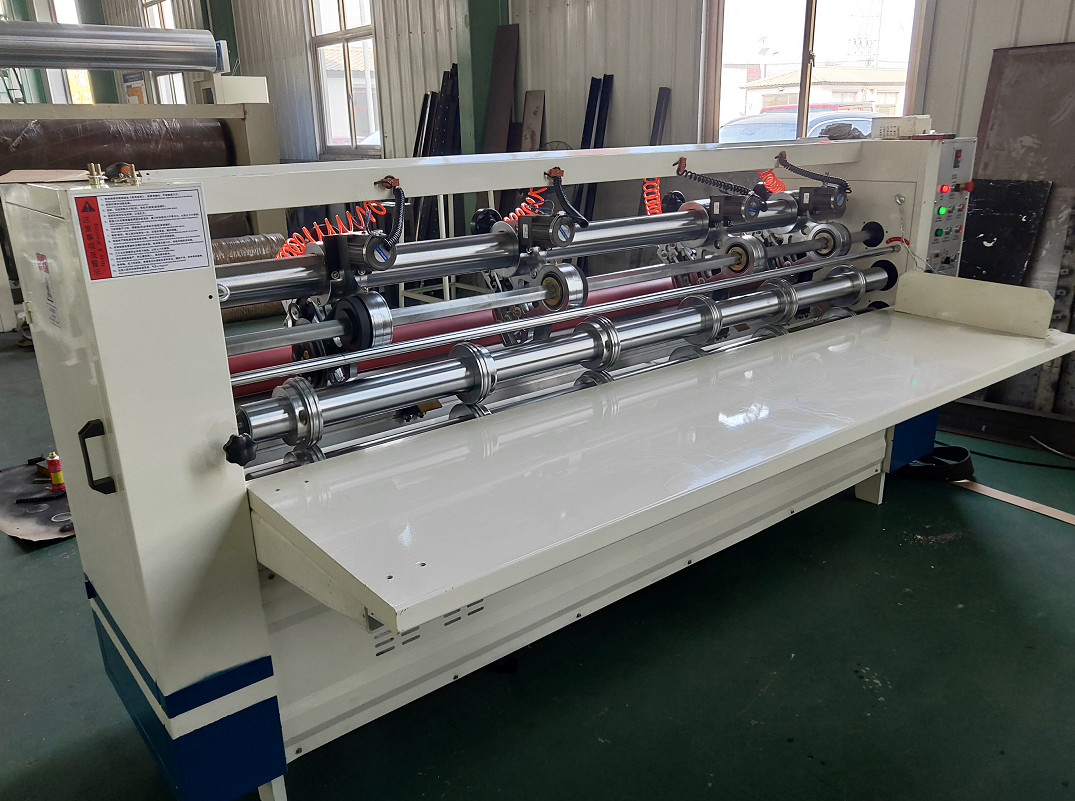

thin blade slitter scorer machine for corrugated in China in China
1. Features
Automatic positioning of slitter sets and scorer sets
Automatic order change, order change time <2s, blade-positioning
precision ±0.5 mm.
Slitter sets and scorer sets are individually servo controlled. For
shifting of slitter or scorer sets we
use precision linear guide, pinion and rack. Thus quick act and
high precision are realized.
Inverter control system for driving Slitters and scorers are
inverter controlled, timing belt driven,
realizes synchronization of slitting and scoring with cardboard
transmission.
Pre-score type
Double-row scorer realizes auto switching between concave and flat
score - Two rows
of scorers, realizes easy switching between concave and flat score
modes.
Ensures high scoring quality - Front row pre-score, back row actual
score. Protects
base liner, gives high scoring quality even for low-quality cardboards.
Automatic adjustment system of gaps between scorers
Gaps between upper and lower scorers are automatically adjusted
according to web quality, flute
type, number of layers.
Thin-blades
Long-lasting alloyed steel thin blades. Automatic selection of
slitter sets, automatic sharpening,
cooling and lubrication of blades.
Automatic edge-waste suction device
Shifting of edge waste suction inlet is AC servo controlled. Left
and right waste suction inlets move
automatically, symmetrically and synchronously according to
position of border blades. For its
transmission are linear guide and timing belt adopted.
Touch-screen monitor
Standard 5.7″ touch-screen monitor and friendly HMI on operator
console is used for
on-site operating.
Superior working conditions
Individual sealed control cabinet; equipped with industrial
air-conditioning system;Dust-free,
constant temperature and humidity working conditions ensures longer life-span of electrical
components.
Stability and reliability
High-quality raw materials, strict heat treatment, high-precision
mechanical processing,
ensures stable operation of equipment on the long run.Use of international branded electrical,
pneumatic components, standard parts, ensures high reliability and
long service life.
High automation
High-automatic running and control, improve the efficiency, save
labors,, and reduce labour intensity.
