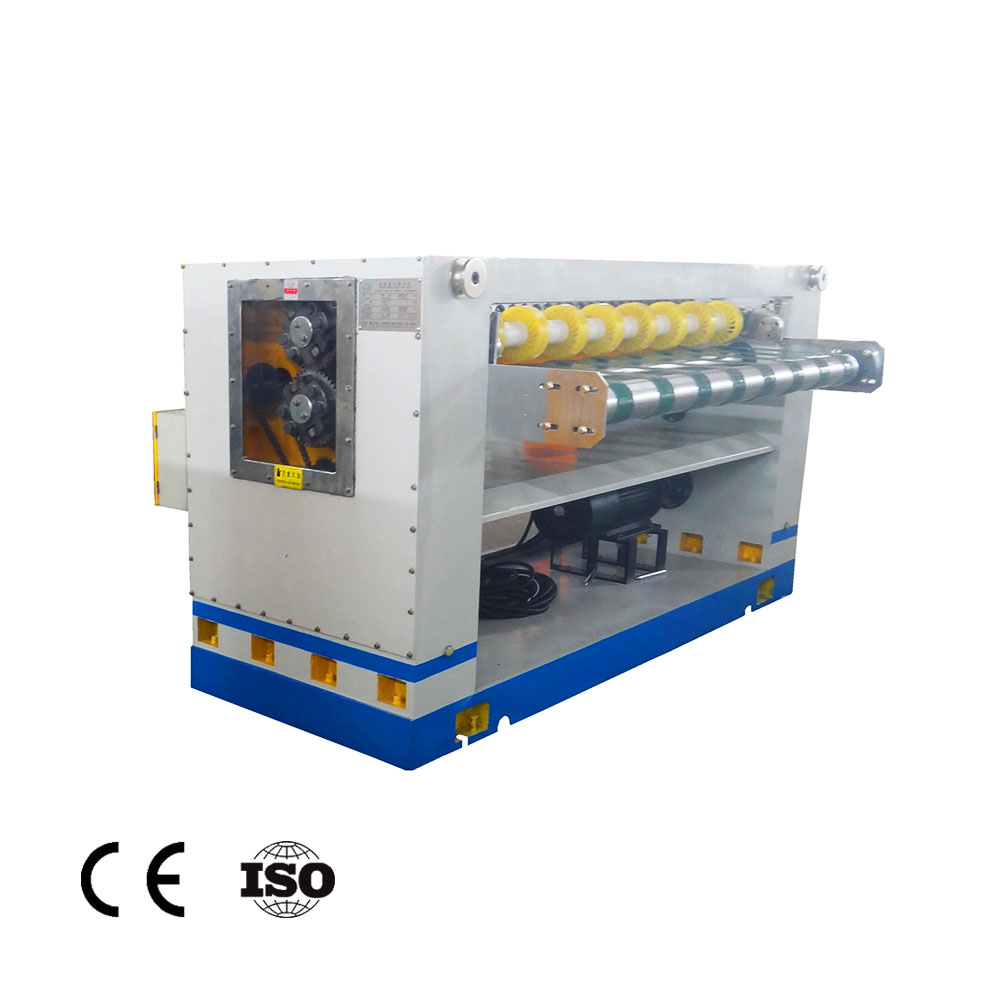

automatic high speed NC cut off machine corrugated carton box machine

Technical parameters:

1. Mechanical speed: 120m/min.

2. Effective width: 1400-2000mm

3. Cutting length: 500mm-9999mm

4. Cutting accuracy: ± 1mm

Features:

1.Using an independent pump and filter with two copper distribution in each gear position oil, lubrication and cooling.

2.Straight structure, reducing cardboard cut resistance and low noise.

3.Knife axis: high-quality alloy steel rollers, by balancing treatment, with good stability.

4.Used around the feed roller platen way the sun wheel, transmission smooth, uniform pressure, not easy to crush cardboard or cause blockage.

5.Precision adjustable no gap gear to ensure precise blade engagement, running balance.

6.NC.reserve group orders, man-machine interface separate screen display various production information available at any time, to modify, append, canceled.

7. It can store 200 units orders,replace the cutter specifications quickly and accurately,
changing orders without stop,And enables networked computers to facilitate production
management.

8. Knife shaft drive gears are precision forged steel induction hardening, backlash-free
transmission, advanced keyless connection, high transmission accuracy.

9. Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife.
scissors, shears, shear force, long blade life.

10. Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly,
easy to crush plate board or cause blockage.

11. This model is the braking energy storage (non-dynamic braking), so the energy consumption
in the production process, the average electricity consumption is 1/3 of an ordinary NC
cutting machine, saving more than 70% power to reach the goal of saving money .

12. Precision adjustable no gap gear to ensure precise blade engagement, running balance.

13.Using an independent oil pump and filter with two copper distribution in each gear position
oil, lubrication and cooling.

14. Knife roller: fine quality forged steel material, the balanced, with good stability.
