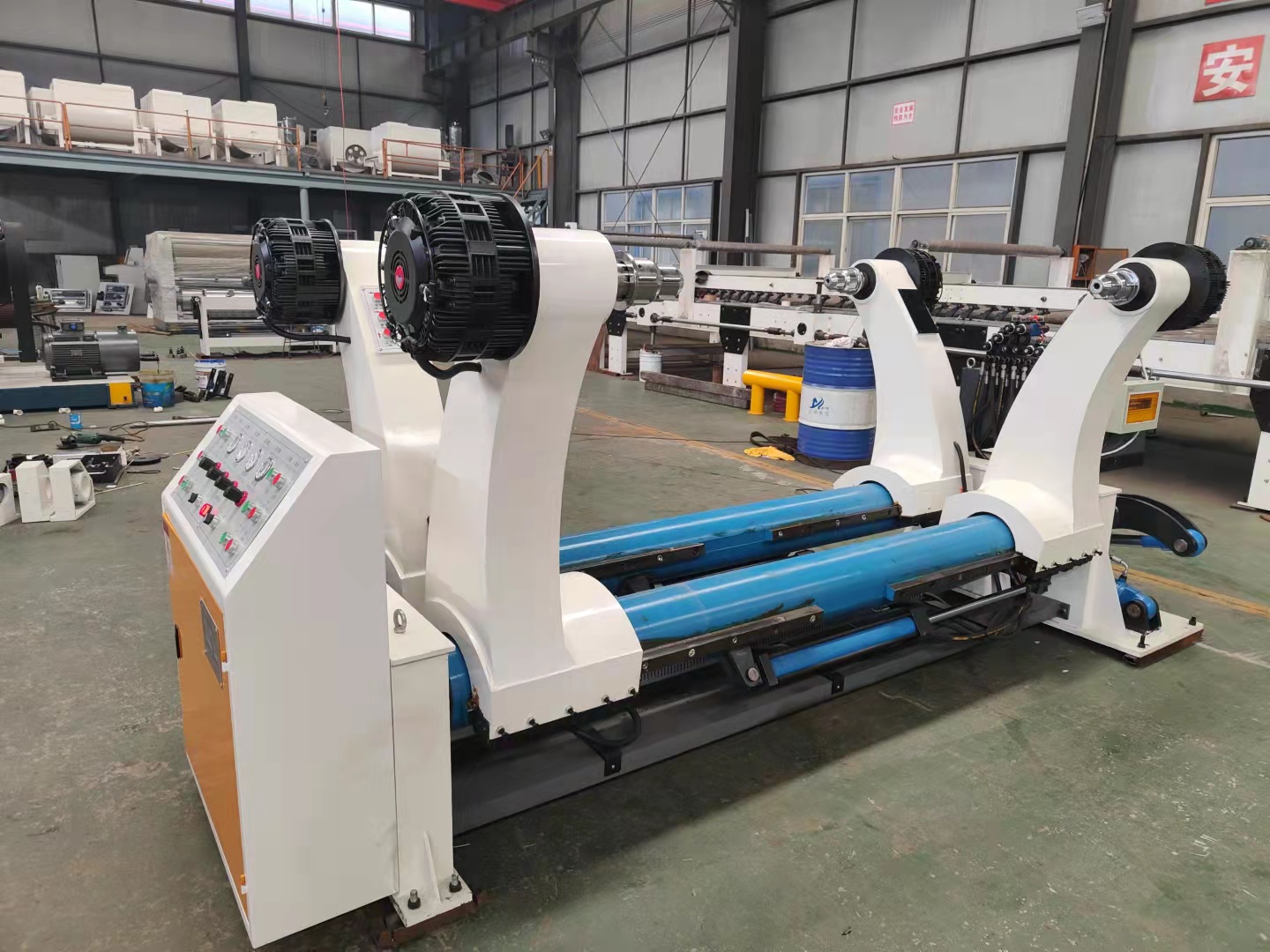

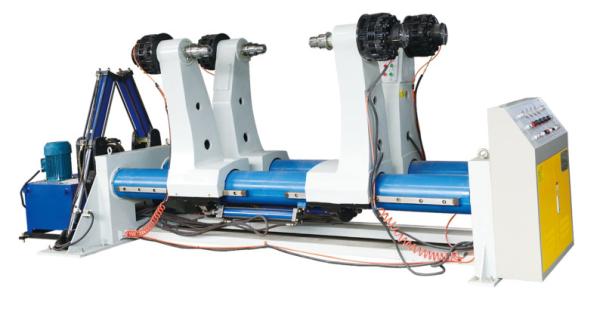

hydraulic shaftless mill roll stand corrugated paperboard production line 3/5/7 ply

Technology Parameter:

Main technical parameters:

Structure features:

1. Symmetric structure can also install two original paper rolls, paper for non-stop for the job.

2. Hydraulic drive, to be completed by paper lift, clamp, loosen, move the pair.

3. Pneumatic tension adjustment paper tension. Jam head with automatic expansion.

4. Muti-point type tension control pneumatic brakes, but also with splicer line control.

Main outsourcing parts, raw materials and origin:

1.Bracket spindle: high quality thick-walled seamless steel Origin: Chengdu

2. Sides of the clamp arm panels and uses: HT200 cast Origin: Hebei

3. Main beam connecting channel: 280mm Origin: Angang

4. Bearing: selection Kazakhstan, tile, Los production

5. Appliances category: Zhejiang CHINT production

6. Pneumatic components categories: AirTAC, Zaozhuang Origin: Taiwan, Shandong

7. Hydraulic Class: North liquid Group (Ward) Location: Beijing, Shandong Zaozhuang

Features:

l Symmetrical structure can install two rolls of paper at the same time and continually change paper roll;

l It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation .

l Equipment was made of HT200-wide casting

l It adopts pneumatic braking.

l Electrical components are controlled centralized(domestic brand)

l Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

l Brake adjustable adopts multi point braking system.
