High Speed 280/320/360 fingerless type single facer corrugated machine

With CE & ISO9001:2001 Certificate

LUM-A/B/C Corrugated Cardboard Production Line is the most professional equipment

for producing corrugated carton box and carton sheet to 2-ply,3-ply, 5-ply, 7-ply (layer) board as

user's or customer's demand.

As over-20-year professional manufacturer,our products as bellows:

Introduction:Single Face e flute corrugated cardboard making machine price

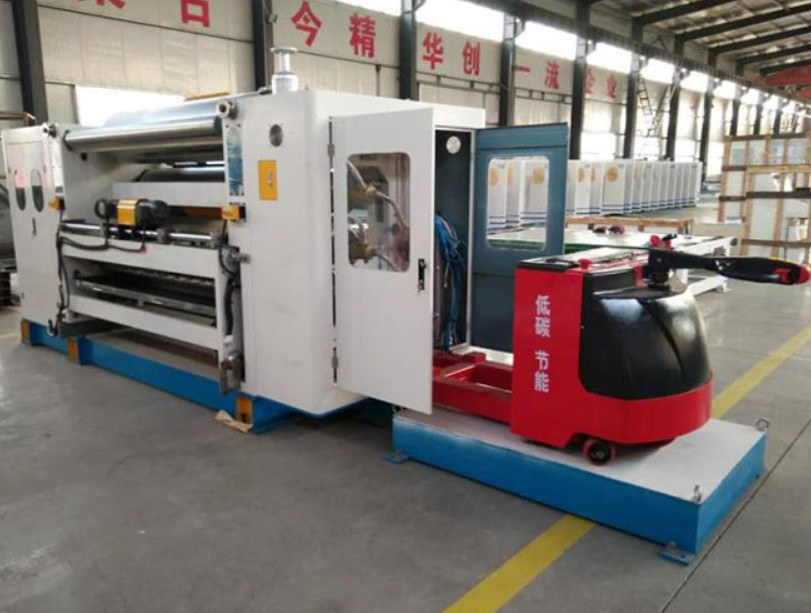

Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.

The driving reducer adpots oil penetration lubrication , reducing noise,universal joint drive and isolating power source.

The guide paper adpots vacuum adsorption, with air volume adjustment device, to maintain the stability of corrugated type in high speed .

Characteristics:Single Face e flute corrugated cardboard making machine price

1. Cover vacuum suction.

2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.1.Manually regulate or electrically regulate the display device.
6. Lubricated by high temperature lubricate grease.
7.Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
8. Pressure roll is medium- frequency quenched and chrome-plated.
9. Width 1400mm~2000mm.
10. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.

     Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was built in 1999 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.

     Our products mainly export toAmerica,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.We uphold the "On good if water, hold world with virtue" company culture and pursue "Don't miss every detail in order to achieve customer satisfaction" business philosophy,and make excellence of products! In decades year,company's products won the "Hebei quality products" certificates,"Science and Technology Progress Award", and has won the governmental honorable title of the provincial and municipalities levels!
