Singer Facer Tape Vacuum Suction Carton Box Packing Machine

Ask Lasest Price
Brand Name :	AO DONG
Model Number :	1600-2600/custom
Certification :	CE ISO9001
Price :	10000-500000
Payment Terms :	T/T, D/P, L/C, D/A
Supply Ability :	8
Delivery Time :	50

Add to Cart

Product Details
Company Profile

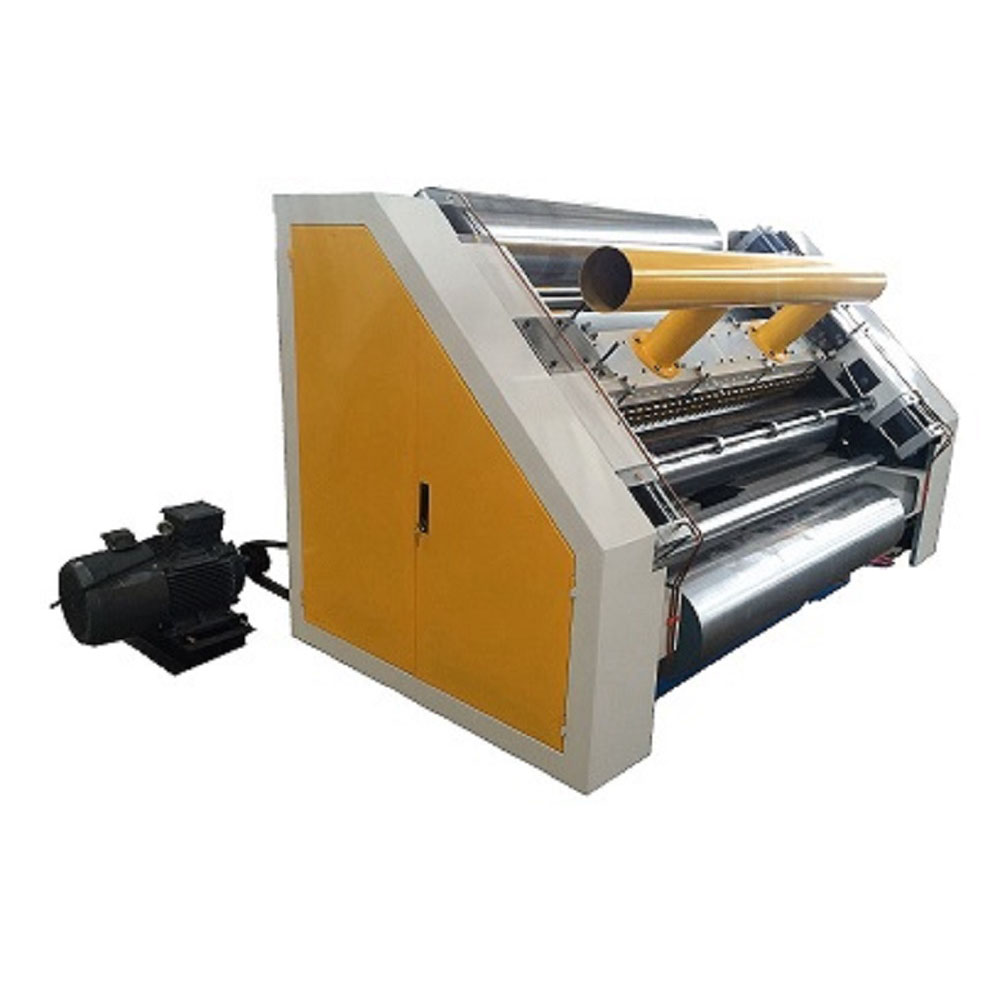

Singer Facer Tape Vacuum Suction Carton Box Packing Machine

Product Description

Functional features

1. The single facer machine is vacuum suction type, make flute with good quality, wind amount is adjustable.
2. Glue roller and doctor gluer roller can be sided on rail, convenient to dismounting and install.
3. Gimbal connect independent gearbox with roller to drive machine, drive more stable and reliable, easy to maintain. Closed oil-immersed gear box, machine reduce vibrator.
4. Upper corrugator roller, pressure roller and glue roller up down controlled by pneumatic.
5. Upper and lower corrugated roller made from 48CrMo alloy steel with heat treatment, hardness 50-55 degree, surfaced be grinded and chrome plated.
6. Pressure roller made from 45# steel, precision grinded with chrome plated, crowning deign in middle, prolong use life.
7. Bearing of corrugated roller and pressure roller be lubricated by high temperature grease
8. Glue width adjust by motorized or manual
9. Glue section can drive separately when main motor stop, prevent glue is dry. (option configuration)
10. Glue amount adjusted by manual, electric adjust option as customized

Singer Facer Tape Vacuum Suction Carton Box Packing Machine

Specification

item	value
Type	Wrapping Machine
Applicable Industries	Home Use, Printing Shops
After Warranty Service	No service
Local Service Location	Egypt, UAE
Showroom Location	Egypt, United States
Place of Origin	China
Weight	300KG
Certification	CE
After-sales Service Provided	Online support
Warranty	1 Year
Key Selling Points	High-accuracy
Marketing Type	New Product 2020
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Engine

Company Profile

00:00

02:25

Hebei Lincheng Packaging Machinery Manufacturing Co., Ltd was built
in 1999 and high quality enterprise,authorized by Hebei Province
Quality and Technical Supervision Bureau,ISO9001 international
quality management system certificate and European CE
certificate.Our company also hold People's Republic of China
Customs Import and Export Right and Packaging Union Vice Chairman
Units Honor. Our company specializes in manufacturing
3-ply,5-ply,7-ply corrugated paperboard production line and carton
equipment R&D,manufacturing, and oversea's sales.It covers an
area of nearly 20,000 square meters,has a first-class R&D
team,technical engineers,excellent management talents and domestic
and foreign marketing team.Our products mainly export to
America,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi
Arabia,the United Arab Emirates,Samoa,South Africa and other 30
countries,etc.We have set our own branch in overseas market.Also,we
obtain good appraisement and high appreciation at home and abroad.
We uphold the "On good if water, hold world with virtue" company
culture and pursue "Don't miss every detail in order to achieve
customer satisfaction" business philosophy,and make excellence of
products! In decades year,company's products won the "Hebei quality
products" certificates,"Science and Technology Progress Award", and
has won the governmental honorable title of the provincial and
municipalities levels!

FAQ

1. who are we?
We are based in Hebei, China, start from 2014,sell to South Asia(25.00%),Mid East(20.00%),Southeast Asia(15.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Domestic Market(5.00%),North America(00.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Paperboard Production Line,Cassette Type Single Facer,Hydralic Shaftless Mill Roll Stand,Six Layer Cardboard Composite Production Line,Four Color Flexo Printer Slotter Machine

4. why should you buy from us not from other suppliers?
Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,etc

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
