    Fingerless Singlefacer Vacuum Adsorption Corrugated

    Ask Lasest Price
    Brand Name : Aodong &LUM
    Model Number : AD2200
    Certification : CE
    Price : 1500
    Payment Terms : L/C, T/T
    Supply Ability : 5/SET/MONTH
    Delivery Time : 36
    • Product Details
    • Company Profile

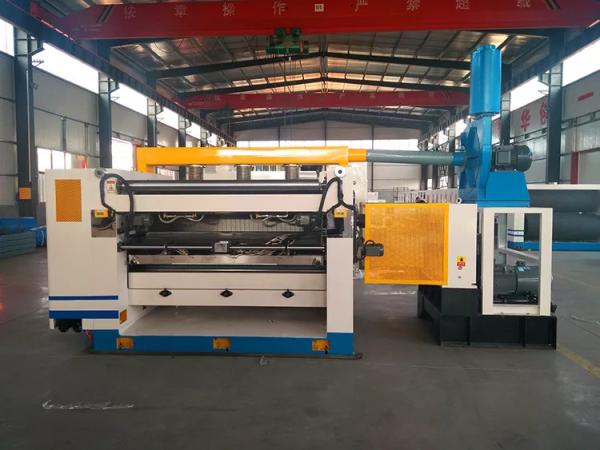

    Fingerless Singlefacer Vacuum Adsorption Corrugated

    Factory price fingerless Vacuum adsorption single facer corrugated machine / single facer for sale


    Product Description

    LUM-A/B/C/D single face corrugated rolls machine is the most professional equipment

    technical parameters as fllowing or custom as customer's demand.

    High Speed fingerless type single facer corrugated machine

    With CE & ISO9001:2001 Certificate


    Technical Parameters
    NO.NameSpecifications
    1Working Width1400-2200mm
    2Design Speed200m/min
    3Thickness wallboardCasting HT200/thickness 240mm
    4Corrugated Roller DiameterDia.Φ380mm/52CrMo alloy steel
    5Pressure roller diameterΦ380mm/45# steel
    6Preheating roller diameterΦ400mm/45# steel
    7Glue roller diameterΦ240mm/45# steel
    8Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated diameter Φ380mm,surface hardness HRC60 degrees;adopt pneumatic cylinders control up and down of corrugated roller.
    9Gimble drive, with independent driver box.Enclosed gear oil immersion lubrication,extend the life of the gear.
    10Glue roller and glue roller are designed to groups guide way slippage,debug and conveniently;corrugated roller unit is designed with host machine separately,easy for lift outside and change other type flute roller.
    11Vacuum adsorption to guide paper with a strong high-pressure turbine.with wind control device machine suction silencer.
    12Adopt electric adjust glue width,coated paste run independently,when the host stopped,to prevent the paste dry.
    13Glue amount with electric adjustment and digital display,easy to operate.(Fitted with foggy sprayer device for paper pre-heater;PLC touch screen can be chosed! )
