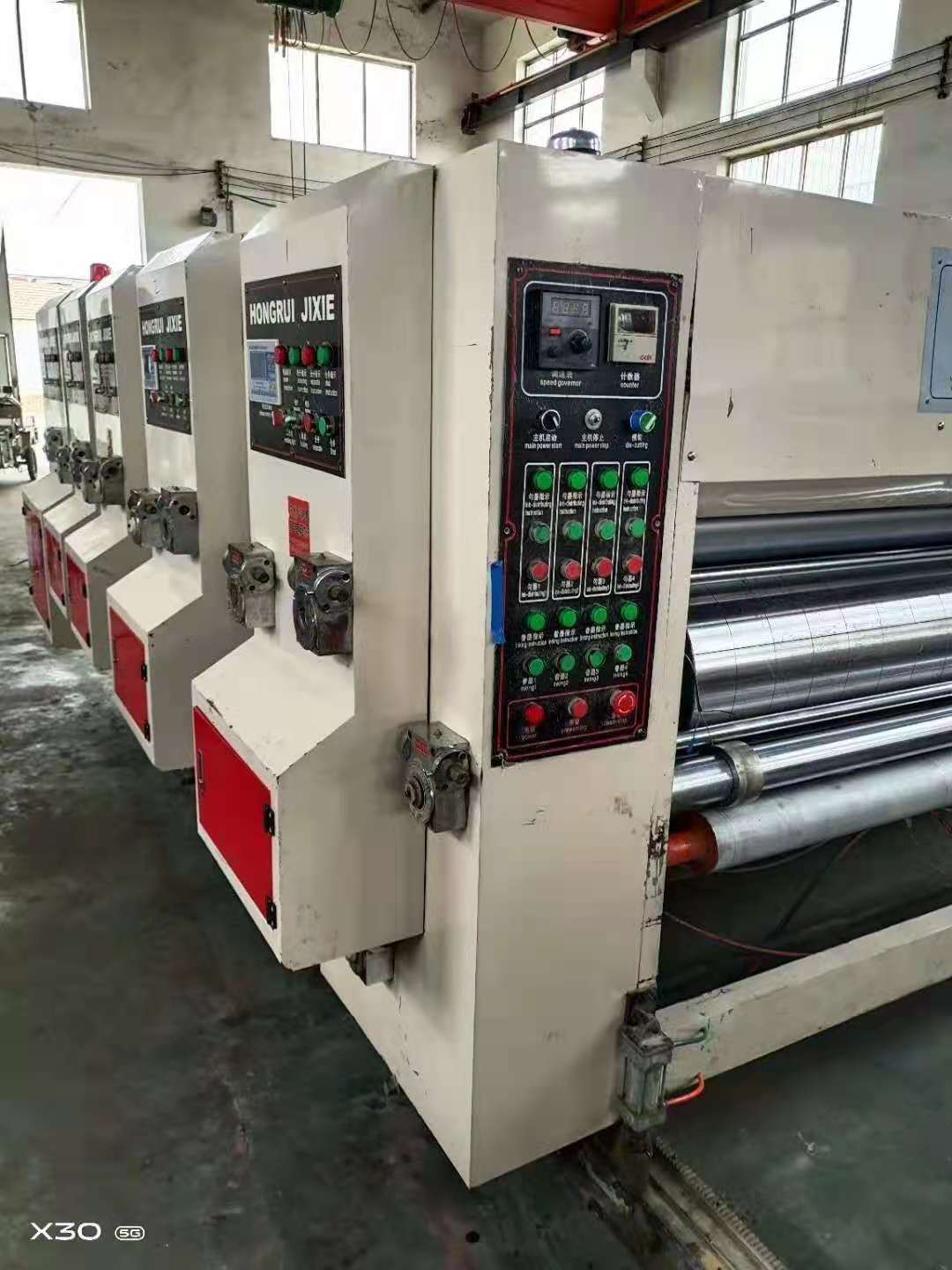

High Speed 3 Color Carton Printer Machine Slotter Die Cutter Mould​

lubrication

1) Each unit uses an oil pump for lubrication to realize circulating spray lubrication.

2) Each oil tank is equipped with an oil storage balancer, which can make the oil level of each group uniform at the same height.

Five, main technical parameters

1. Machine design speed: 120 (sheets/minute)

2. Maximum production speed: 100 (sheets/minute)

2. Maximum paper feed size: 1250mm×2550mm

3. The minimum paper feed size: 320mm (full page) × 650mm

4. Maximum printing area: 1200mm×2500mm

5. Overprint accuracy: ≤±0.5mm

6. Slotting accuracy: ≤±1.5mm

7. Standard printing plate thickness: 7.2mm.

8. Separate sheet feeding: 1650×2550mm.

     Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was built in 1999 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.

     Our products mainly export toAmerica,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.We uphold the "On good if water, hold world with virtue" company culture and pursue "Don't miss every detail in order to achieve customer satisfaction" business philosophy,and make excellence of products! In decades year,company's products won the "Hebei quality products" certificates,"Science and Technology Progress Award", and has won the governmental honorable title of the provincial and municipalities levels!
