Humanized Design Semi Automatic Flute Laminator Front Gauge Registration

Ask Lasest Price
Brand Name :	AD
Model Number :	AD- Automatic flute Laminating Machine
Certification :	ISO CE ISO9001
Price :	1220
Payment Terms :	D/A, T/T, Western Union
Supply Ability :	1000sets
Delivery Time :	35 days

Add to Cart

Product Details
Company Profile

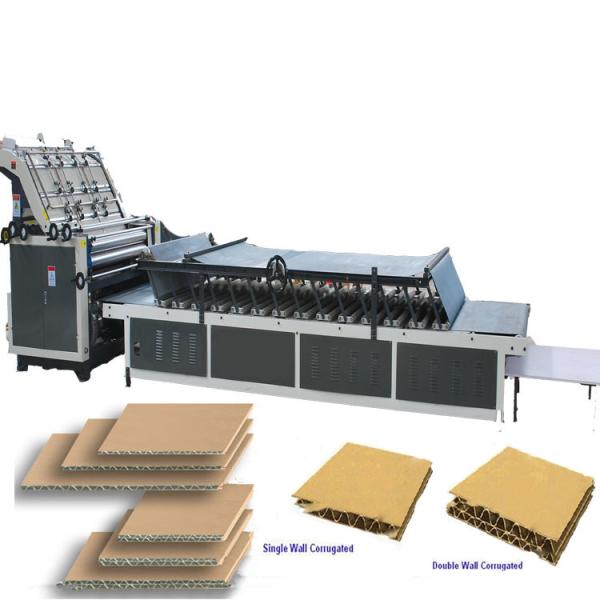

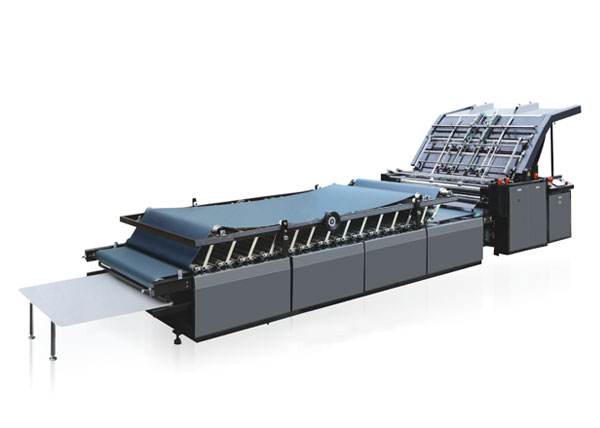

Humanized Design Semi Automatic Flute Laminator Front Gauge Registration

corrugated carton cardboard flute laminating machine semi automatic

Product Description

Function description:

1. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

2. The humanized design that manually feeding from the front makes delivery more easier and efficient.

3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

4. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;

5. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.

6. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment

by way of adjustment worm roll lamination pressure for quick

7 Control of water tank cleaning cycle using an independent method, clean, hard rubber product;

8Suitable for color top sheet 120-500g cardboard and A/B/C/D/E/F corrugated paper laminating;

Main Technical Parameter:

Model	1300	1450	1600
Maximum size(W*L)	1300*1100mm	1450*1100mm	1600*1400mm
Minimum size(W*L)	350*350	350*350mm	450*450mm
Laminate precision	≤±1.5mm	≤±1.5mm	≤±1.5mm
Speed	6000 sheets / h	6000 sheets / h	6000 sheets / h
Total power	4.5kw	4.5kw	4.5kw
Machine size	8.81.951.5m	8.82.21.5m	8.82.51.5m
Total weight	3T	3.2T	3.5T

Flute laminating machine function :

This machine used for laminating beautiful clear carboard with corrugated board , used for the package with high standard .
