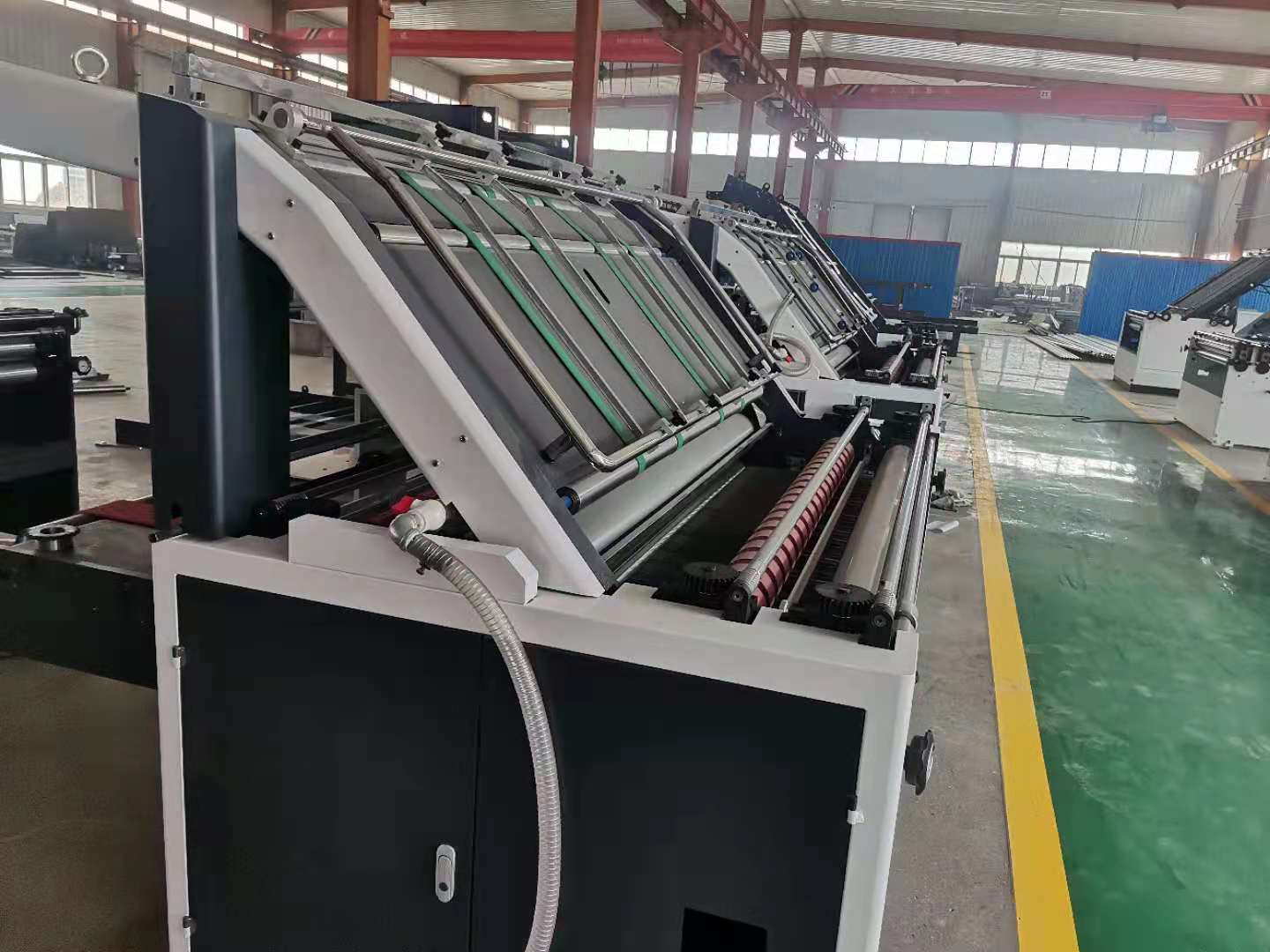

Position High Accuracy 100m/Min Semi Automatic Flute Laminator

Automatic Flute Laminating Machine With Position High Accuracy

Main features:

1. This machine is the fourth generation product of today's push-claw automatic paper mounting machine. Its advantages such as simple operation, convenient maintenance, high speed, low noise and high precision help you win the market.

2. The main components and computer control parts of this machine are made of famous brand products from Japan and Germany to ensure the precision and service life of the products.

3.BZJ series adopts high-tech liquid level control system. The glue needed by the machine is automatically supplied, and it is equipped with a glue recycling system. The glue amount can be adjusted according to the different requirements of the paper, so that the glue is coated on the paper more evenly, thus saving glue and ensuring product quality.

4. This machine is suitable for sticking cards to corrugated paper in printing and packaging industry. When the machine runs at high speed, it can work normally on the third, fifth and seventh floors of A, C, B, D, E, F and N, and the mounted paper has good flatness and high accuracy.

Technical parameters:

model	unit	AO-1300C	AO-1450C	AO-1600C
max size of cover face (W×L)	mm	1300×1100	1450×11000	1600×11000
mix size of cover face (W×L)	mm	350×350	350×350	350×350
laminating precision	mm	≤±1.5	≤±1.50	≤±1.50
design speed	m/min	100	100	100
gross power	kw	12	12	12
outline dimension	m	12.5×2.15×2.6	12.5×2.30×2.6	12.5×2.45×2.6
total weight	T	6.8	7.2	8.0
