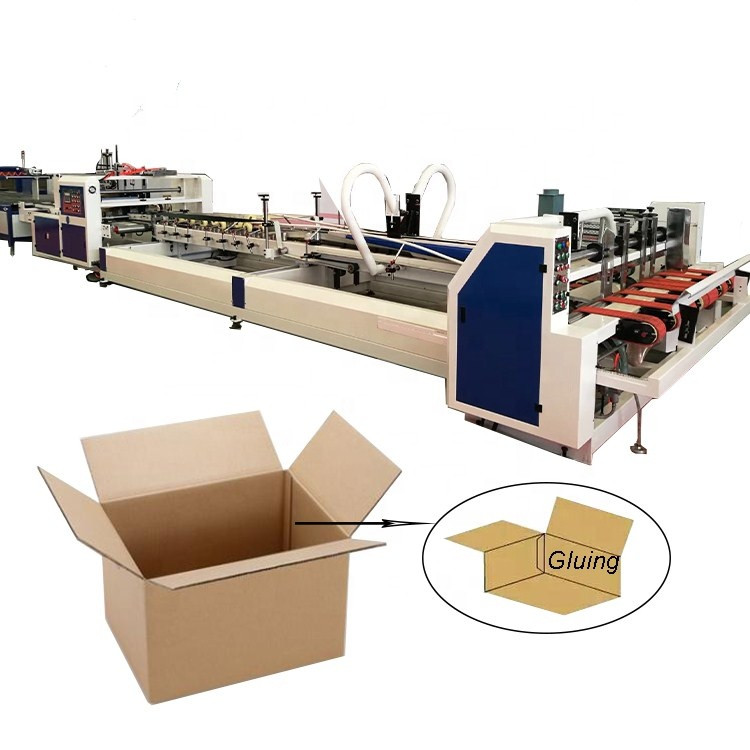

1,Machine featuresThis series of products made of mechanical plate, all using a large
processing center to complete a processing to ensure the accuracy
of the various stations to ensure that the equipment is more stable
operation.
1. Feeding section: friction feeder, equipped with two separate
motor independent drive, side panel width can be fine-tuned, with 3
adjustable Feeding knife and 3 small Feeding knife, there are 8
rubber tape which contains 4 suction belt, two separate control,
retractable rear support can be used for longer box type, to ensure
smooth paper delivery fast.
2. Glue part
to match the glue itself, the use of three groups of plastic system
to ensure that the finished product qualified rate of 100%,
double-slot flow of plastic road, to ensure the loss of glue
invalid, improve costs, easy to disassemble, easy to clean.
3. Conveying part
Using of whole process close to the synchronization technology to
ensure that the paper in the fast transport process does not run
away.
4. Paper part
the use of photoelectric automatic sensor system, high sensitivity,
to ensure that the machine speed block.
5. Pressed part
the use of three groups of cylinders and photoelectric automatic
sensor system to ensure consistency and smooth.
2,Paper feeding department:It can suitable for bend cardboard after adjusting height of
cardboard feeding.
The electromagnetism clutch in high quality, it can make the
feeding part control paper inside alone and easy operation and
reliable.
Pressing line wheel is adjusting, the thickness of cardboard can be
2-8mm.
It is with twice creasing structure, it can process the cardboard
in low quality.
3,Automatic gluing part:
* Automatic gluing part adopts full electric control,automatically
adjust the gluing position according to the size of the cardboard.
* The gluing width of the carton is 20-25mm, and the lower gluing
method.
* The glue box can be moved left and right according to the type of
carton.
* Gluing volume can be adjusted,stable,high capacity,easy to
maintain.
* All the materials are pure stainless steel,never rust,resistant
to various types of corrosion.
4,Automatic packing and output part:
Principle if count to stacking is easy and reliable.
It is controlled by digital and easy operation, keep working to
input data, count automatically and output accurate.
It has function with correction tolerance can be adjustable.
Output counter adopts pneumatic and accurate movement and fast.
