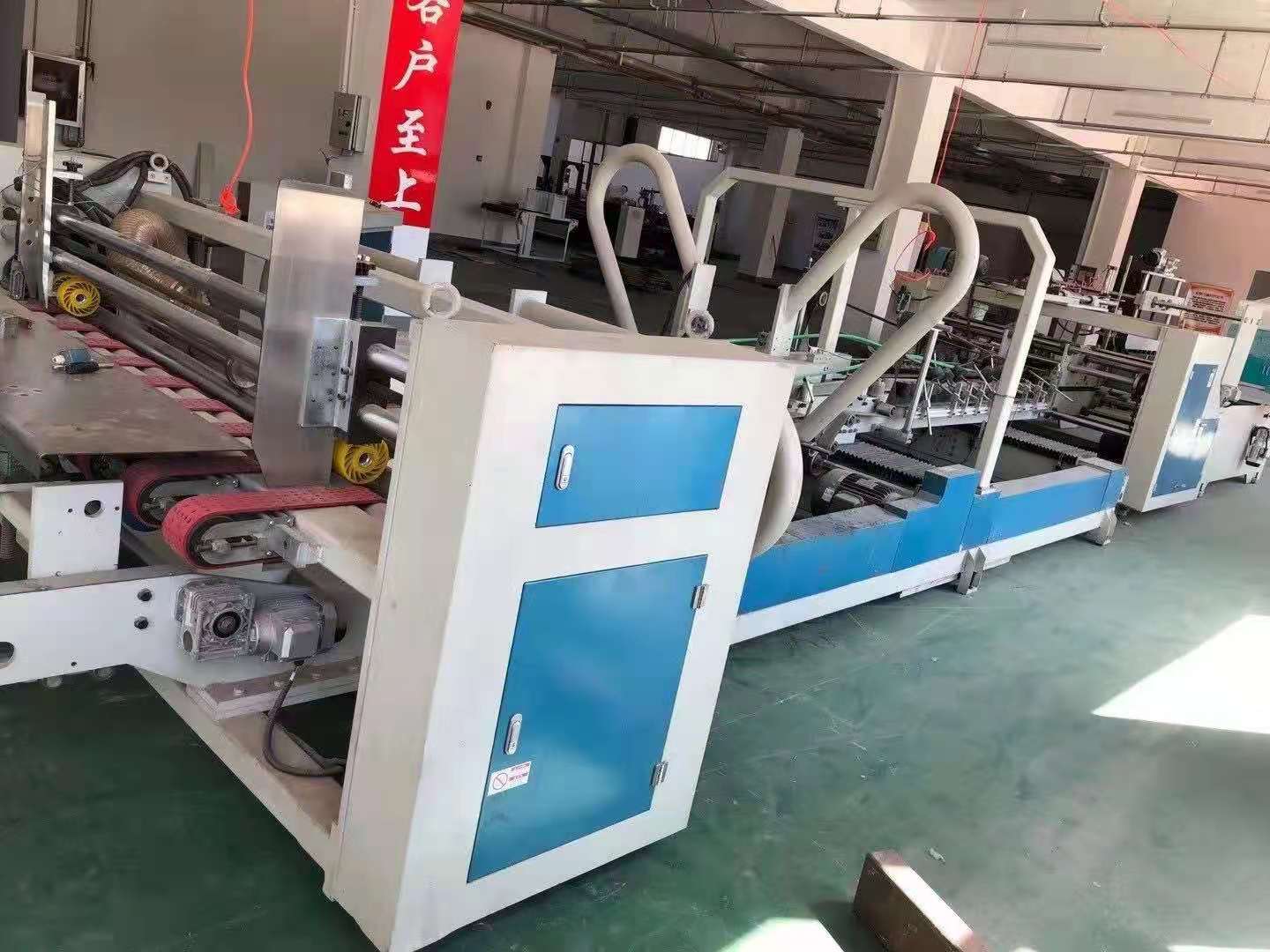

Chinese 3000 Automatic Folder Gluer Machine With High Quality

5. Pneumatic method for counting and pushing out, PLC electronic control, reliable action, accurate and fast

6. Adopt PLC programming controller and touch screen digital control, simple operation, reliable action, input data without stopping, automatic counting

7. The output part adopts the synchronous pressing method of the bottom conveyor belt and the upper pressing belt to make the finished carton stick firmly and output neatly.

Specific Operation Instructions

5. Paper Feeding Adjustment:

Chinese 3000 Automatic Folder Gluer Machine With High Quality

1. Adjust the width of the feeding board

2. Adjust the length of the paperboard

3. Adjust the thickness of the paperboard

4.Paper feeding belt adjustment mechanism

Adjustment instructions:

1. Location: Adjust according to the width of the cardboard and the softness and hardness of the cardboard. The inclination of the cardboard should not be too large, otherwise the paper feeding effect will be affected.

2. Place: Adjust according to the length of the cardboard, not too tight, which will cause the cardboard to deform.

3. Place: Except for the left and right balanced cardboard, the bottom height should be 0.5-1.5mm greater than the cardboard height.4. Location: According to the operation of the belt, if there is deviation of the paper feeding, the adjustment bolts on both sides can be adjusted appropriately. In addition, the tension of several belts should be kept the same and should not be too large. This will cause damage to the parts. The company does not count deductibles. According to the size of the cardboard, block the excess or inappropriate vacuum suction holes under the belt with iron plates.
