Auto Feeder Automatic Flute Laminator , Cardboard Laminating Machine

    Buy cheap Auto Feeder Automatic Flute Laminator , Cardboard Laminating Machine from wholesalers

    Buy cheap Auto Feeder Automatic Flute Laminator , Cardboard Laminating Machine from wholesalers
    • Buy cheap Auto Feeder Automatic Flute Laminator , Cardboard Laminating Machine from wholesalers
    • Buy cheap Auto Feeder Automatic Flute Laminator , Cardboard Laminating Machine from wholesalers

    Auto Feeder Automatic Flute Laminator , Cardboard Laminating Machine

    Ask Lasest Price
    Brand Name : AD
    Model Number : AD- Automatic flute Laminating Machine
    Certification : ISO CE ISO9001
    Price : 1220
    Payment Terms : D/A, T/T, Western Union
    Supply Ability : 1000sets
    Delivery Time : 35 days
    • Product Details
    • Company Profile

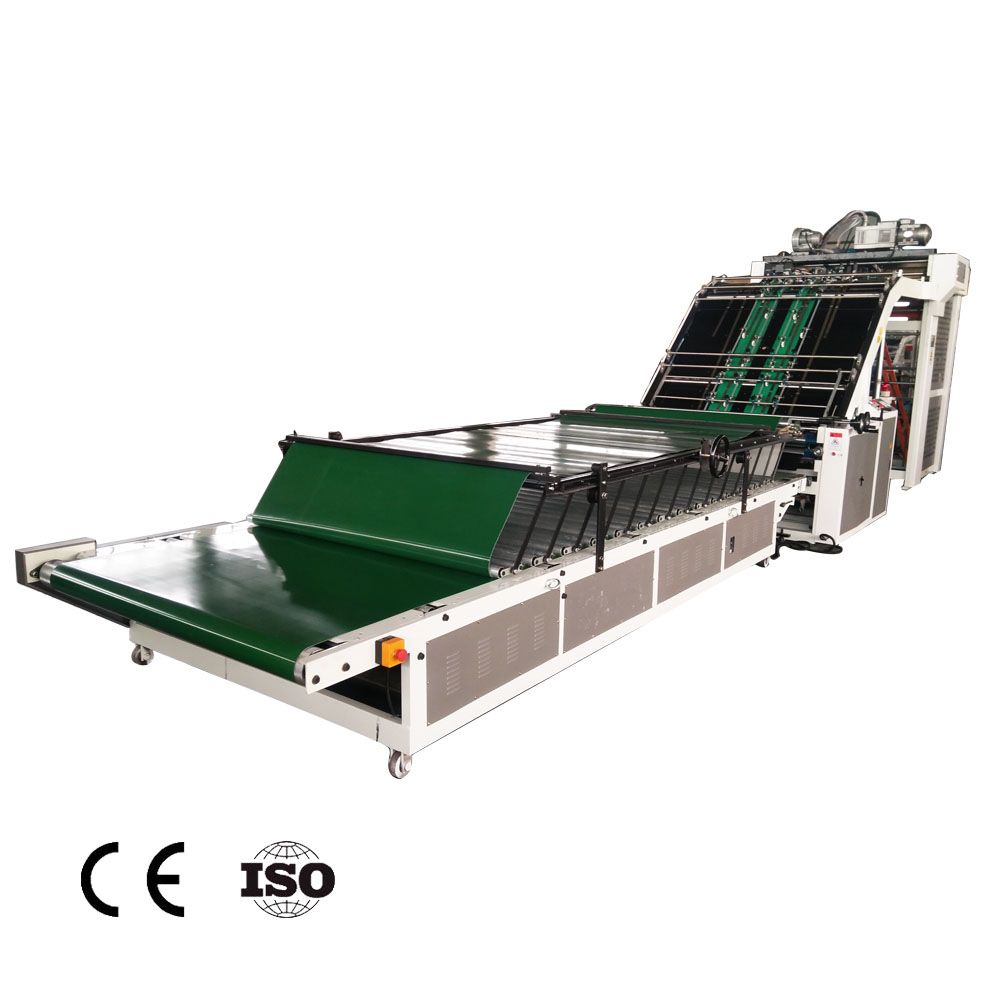

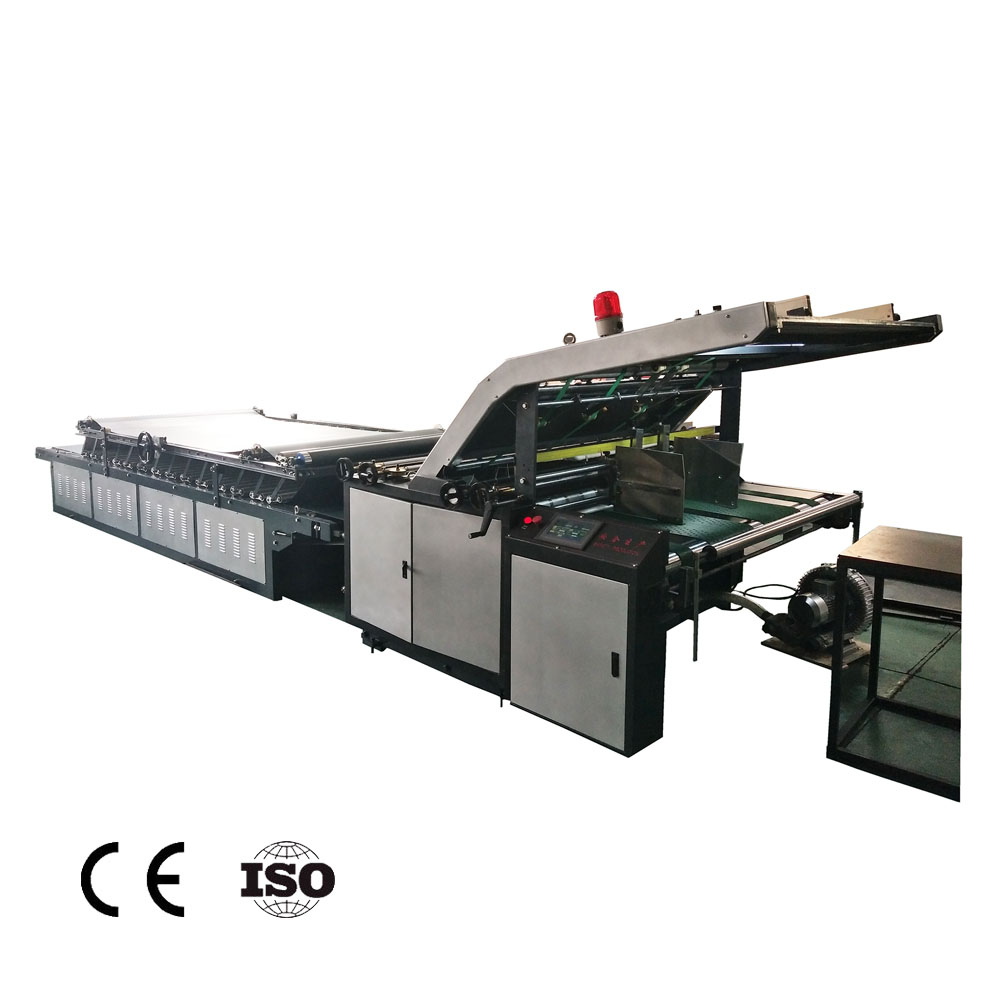

    Auto Feeder Automatic Flute Laminator , Cardboard Laminating Machine

    Automatic corrugated paperboard Flute lamination machine

    Features

    1.Automatic Laminating Machine are the fourth-generation products of back push style, the machine have advantage of easy operation, convenient maintenance, high speed, low noise, and high accuracy. It will help you to gain the power in the market improved parts and electrical components from Japan and Germany, guarantee the quality and use life.


    2.Timing Belt Drive of the machine is mainly imported from Japan, . Timing belt has soft and tough, durable wear and heat resistance characteristics to ensure the accuracy of the machine precision fit.


    3.Adopt the high-tech control system, supply the glue by automatic when the machine working, match with the recyclable gluing system, glue quantity can adjust according to the different of the paperboard, it make the glue evenly on the paperboard, this system ensures glue saving with better lamination quality


    4.Suitable for lamination of corrugated paperboard to cardboard ,and cardboard to cardboard.Automatic feeding bottom sheet paperboard and face paperbaord.

    ModelYB-1300DYB-1450DYB-1650D
    Max Sheet1300*1250mm1450*1250mm1650X1450mm
    Min Sheet400X400mm400X400mm400X400mm
    Top Paper Thickness150GSM-600GSM150GSM-600GSM150GSM-600GSM
    Max Speed6000sheets/hour6000sheets/hour6000sheets/hour
    Fitting Precision±1.5mm±1.5mm±1.5mm
    Measurement9500*2000*2400mm9500*2200*2400mm9500*2400*2400mm
    Machine Weight4500kg5000kg5500kg
    Machine Power10KW/380V11KW/380V12KW/380V
    Bottom Paper ThicknessA,B,C,E,F,AB,BB,BC,EE/ Corrugated paper/ Industry coardboard
