    Rotary NC Cutting Machine 1100mm-2200mm Max Effective Width

    Ask Lasest Price
    Brand Name : AODONG
    Model Number : AODONG-18
    Certification : IOS9001
    Price : 500 USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

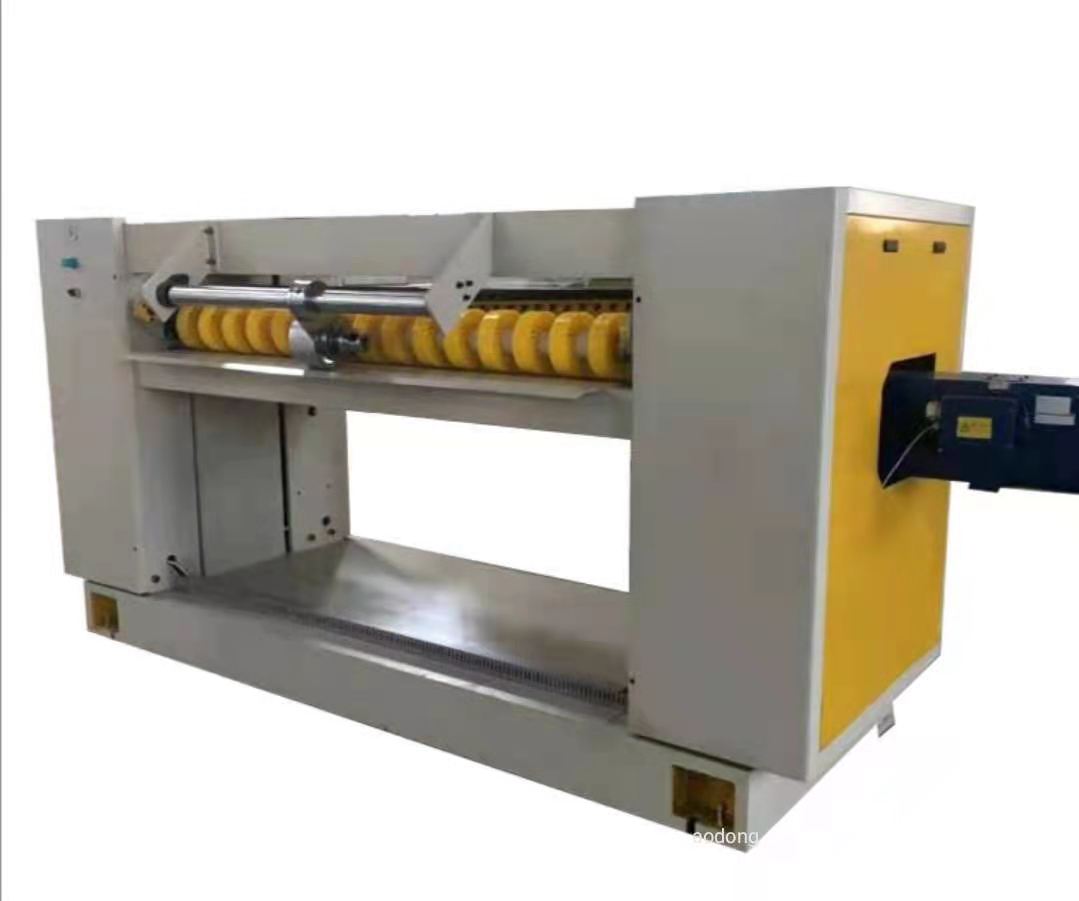

    Rotary NC Cutting Machine 1100mm-2200mm Max Effective Width

    NC Rotary Cut-Off Machine With Helical Cutting Knife


    Max Effective Width1100~2200mm
    Max Paper Roll Diameter1500mm
    Max Paper Roll Weight3000kg
    Corrugating RollerΦ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
    Min Slitting Width150mm
    Cutting Length500~9999mm
    Design Speed100~200m/min
    Heating MethodSteam Heating
    Economic Working Speed80~160m/min

    1) NC Computer-control Rotary Cut-off fixed-length, color tracking cross-cutting, automatic change orders, select for orders

    2) permanent magnet synchronous motors, AC servo control of cross-cutting, high efficiency, high-precision

    3) Frequency out of paper delivery, and production line speed synchronization control

    4) Color Touch Panel Computer Monitor operation, simple operation, visual surveillance

    5) perfect order management, production statistics, production management system online

    3/5/7-layer Corrugated Cardboard Production Line

    1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.

    2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

    3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

    4) It is the ideal and perfect equipment for corrugated carton box factories.
