    Carton Box Corrugated Production Line With Paste Making System

    Ask Lasest Price
    Brand Name : Aodong
    Model Number : LUM
    Certification : CE ISO9001
    Price : 150000-300000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1set/5days
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    Carton Box Corrugated Production Line With Paste Making System

    high speed 3 ply 5 ply Corrugated cardboard production line/corrugator machine


    Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
    Main equippment list

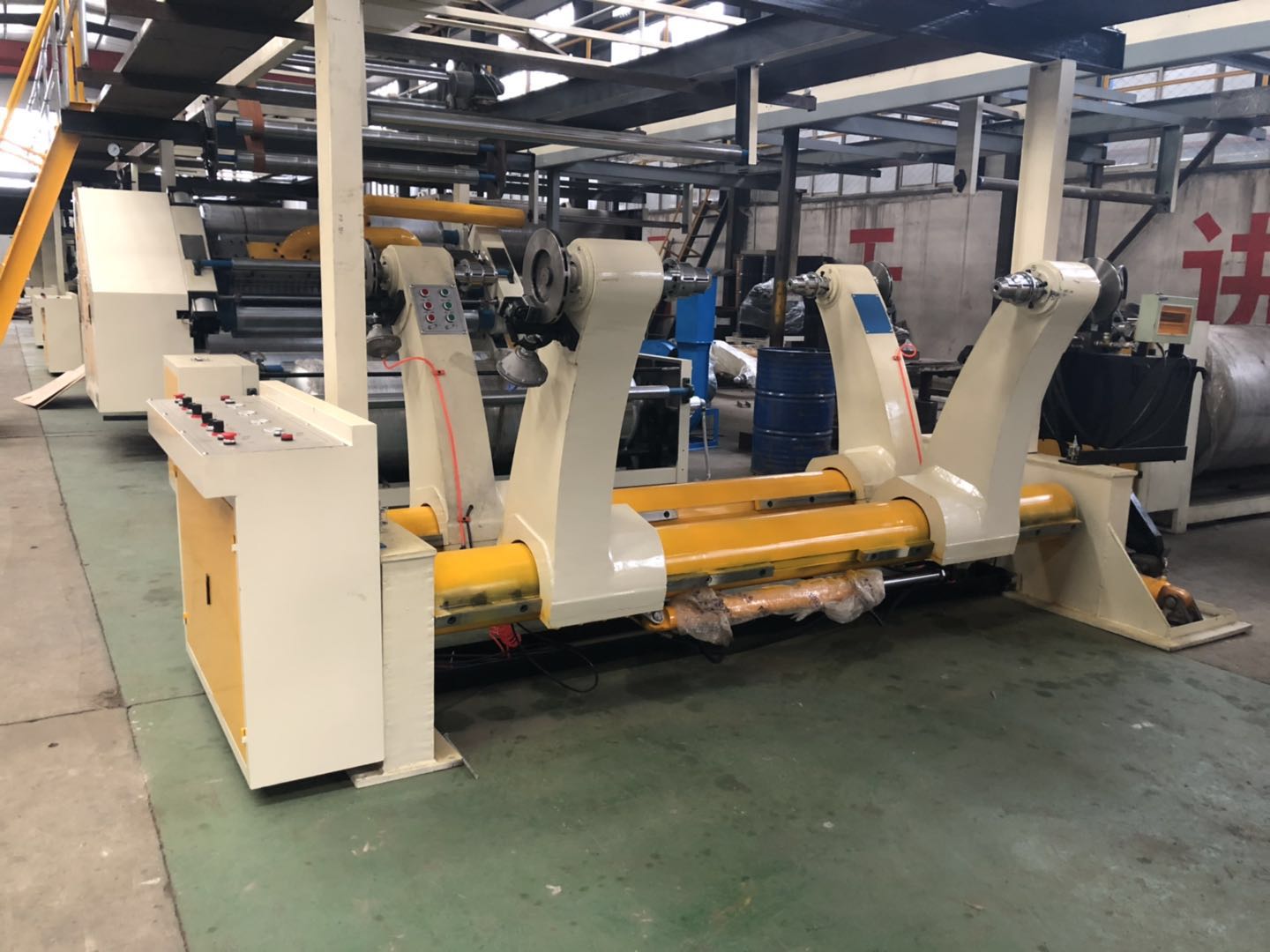

    1. Mill roll stand (mechanical and hydraulic shaftless is available)
    2. Splicer(option, it is used for high speed production line)
    3. Single facer
    4. Preheater
    5. Multi-preheater
    6. Gluing machine
    7. Double facer
    8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
    9. NC cut-off(servo control, straight and helical)
    10. Stacker and delivery machine
    11. Paste making system
    12. Accessories(air compressor, operation box, pipe)
    Main technology parameter
    ModelWJ120-1800
    Effective width1800mm
    Design speed120m/min
    Working speed0-100m/min
    Steam pressure and consumptionPressure: 1-1.3Mpa consumption: 2500-3200kg/h
    Air pressure and consumptionPressure: 0.8-1.0Mpa consumption: 1.3m³/min
    Total powerAbout 200kw
    Total lengthAbout 80m(depend on base drawing)
    DimensionAbout 80m×4.3m× 4.5 m (L×W×H)

    Equipment flow: according the customers' workshop to installation the machine.
