Plc Automatic Carton Box Making Machine Producing 3/5/7 Ply Cardboard

high speed 3 ply 5 ply Corrugated cardboard production line/corrugator machine

Main equippment list:
1. Mill roll stand (mechanical and hydraulic shaftless is available)
2. Splicer(option, it is used for high speed production line)
3. Single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)

Main technology parameter:

Effective width	1800mm
Design speed	60-200m/min
Working speed	0-200m/min
Steam pressure and consumption	Pressure: 1-1.3Mpa consumption: 2500-3200kg/h
Air pressure and consumption	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min
Total power	About 200kw
Total length	About 80m(depend on base drawing)
Dimension	About 80m×4.3m× 4.5 m (L×W×H)

Model	Design Speed(m/min)	Economic Speed(m/min)	Working Width(mm)	Multi-ply Board
LUM-A-100	100	60-80	1400-2000	3/5/7 ply
LUM-B-150	150	80-120	1400-2200	3/5/7 ply
LUM-C-200	200	120-150	1400-2200	3/5/7 ply
LUM-D-300	300	150-200	1400-2200	3/5/7 ply

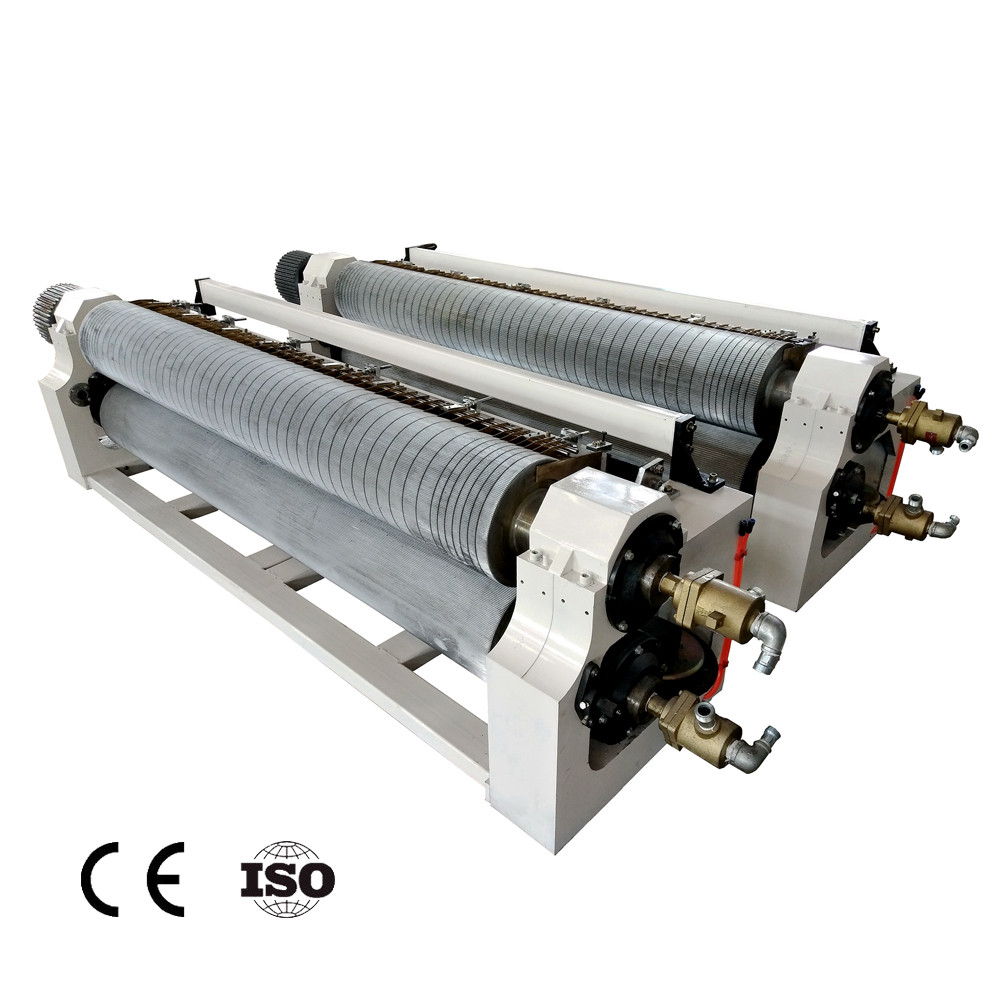

High Precision Alloy Steel Corrugated Roller

1. The material is high quality CrMo alloy steel or quality roller coated with tungsten.

2. Flute is UV shape which is widely used in the world, low paper shrinkage,high quality and strong paperboard

3. Adopt imported precision machine tools,advanced molding grinding and electroplating,flute precision apply to national standard.

4. The surface of corrugated roller flute teeth are middle-frequency quenched,hardness reach HRC60,upper corrugated roller is drum shape,with long life.

Single Facer Machine

Fingerless vacuum suction type single facer with preheater for liner paper and steam spray device for medium paper.Upper and lower corrugated roller are unit assemblage,the whole corrugated roller group can be move and quick replacement,to change flute type quickly.Bearing for corrugated rollers and pressure roler adopt high-temperature lubricate grease to keep smoothly and durably.

Double Glue Machine

Design Speed:200-250m/min

Glue Roller:268-320MM

Special line on the surface of the glue applicator roller,surface ane hard chrome palting,even glue suply,low cost.Self-circulating glue supplying system to avoid glue hardenning and to control glue quantity ,keeping the glue goodquality and saving

Double Facer Machine

Man-machine interface PLC automatic control,automatic switching of the heating plate number and size of the pressure to adapt to different kind of paper flute perk intact.Heating plate is surface grinded and chrome-plated,width 600mm.18-22pieces chose.Type of rubber drive roll with vulcanized surface to avoid deviation.

Thin Slitter Scorer Machine

Automatic synchronize with the corrugated line and can also get in line with manufacture management system.High compatibility. Three types which can also be alternated with electrical system scroing can also be computer controlled tith fine scring results.

Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was built in 1999 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.Our products mainly export to America,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.We uphold the "On good if water, hold world with virtue" company culture and pursue "Don't miss every detail in order to achieve customer satisfaction" business philosophy,and make excellence of products! In decades year,company's products won the "Hebei quality products" certificates,"Science and Technology Progress Award", and has won the governmental honorable title of the provincial and municipalities levels!
