    Factory 3ply corrugated cardboard carton paper box making machine

    Ask Lasest Price
    Brand Name : Aodong
    Model Number : 3 ply
    Certification : ISO
    Price : 15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 stes
    Delivery Time : 30 workdays
    • Product Details
    • Company Profile

    Factory 3ply corrugated cardboard carton paper box making machine

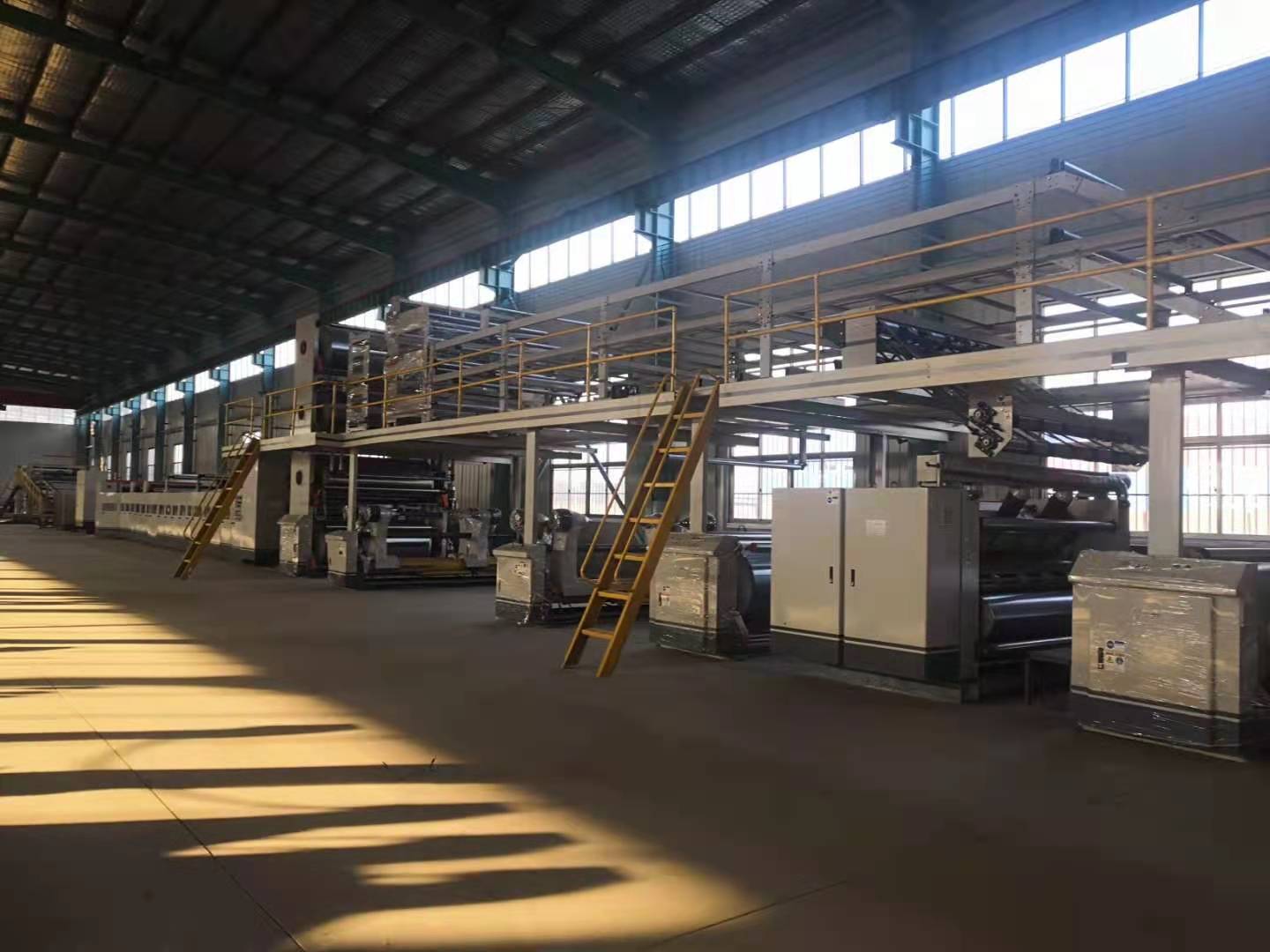

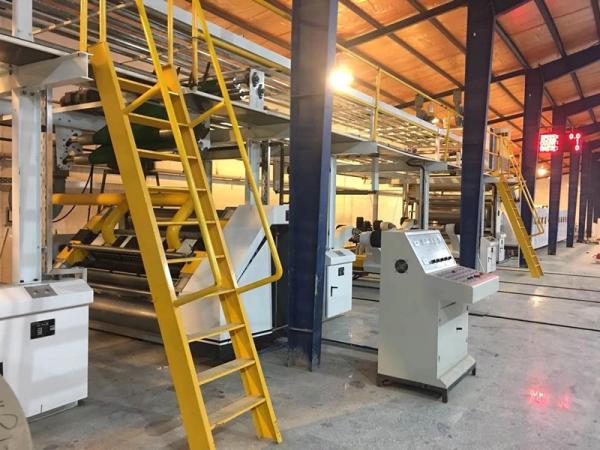

    high speed 3 ply 5 ply Corrugated cardboard production line/corrugator machine



    Main technology parameter:
    Effective width1500-2500mm
    Design speed60-200m/min
    Working speed0-200m/min
    Steam pressure and consumptionPressure: 1-1.3Mpa consumption: 2500-3200kg/h
    Air pressure and consumptionPressure: 0.8-1.0Mpa consumption: 1.3m³/min
    Total powerAbout 200kw
    Total lengthAbout 80m(depend on base drawing)
    DimensionAbout 80m×4.3m× 4.5 m (L×W×H)

    ModelDesign Speed(m/min)Economic Speed(m/min)Working Width(mm)Multi-ply Board
    LUM-A-10010060-801400-20003/5/7 ply
    LUM-B-15015080-1201400-22003/5/7 ply
    LUM-C-200200120-1501400-22003/5/7 ply
    LUM-D-300300150-2001400-22003/5/7 ply

    Main equippment list:
    1. Mill roll stand (mechanical and hydraulic shaftless is available)
    2. Splicer(option, it is used for high speed production line)
    3. Single facer
    4. Preheater
    5. Multi-preheater
    6. Gluing machine
    7. Double facer
    8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
    9. NC cut-off(servo control, straight and helical)
    10. Stacker and delivery machine
    11. Paste making system
    12. Accessories(air compressor, operation box, pipe)





    Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was built in 1999 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.Our products mainly export to America,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.We uphold the "On good if water, hold world with virtue" company culture and pursue "Don't miss every detail in order to achieve customer satisfaction" business philosophy,and make excellence of products! In decades year,company's products won the "Hebei quality products" certificates,"Science and Technology Progress Award", and has won the governmental honorable title of the provincial and municipalities levels!
