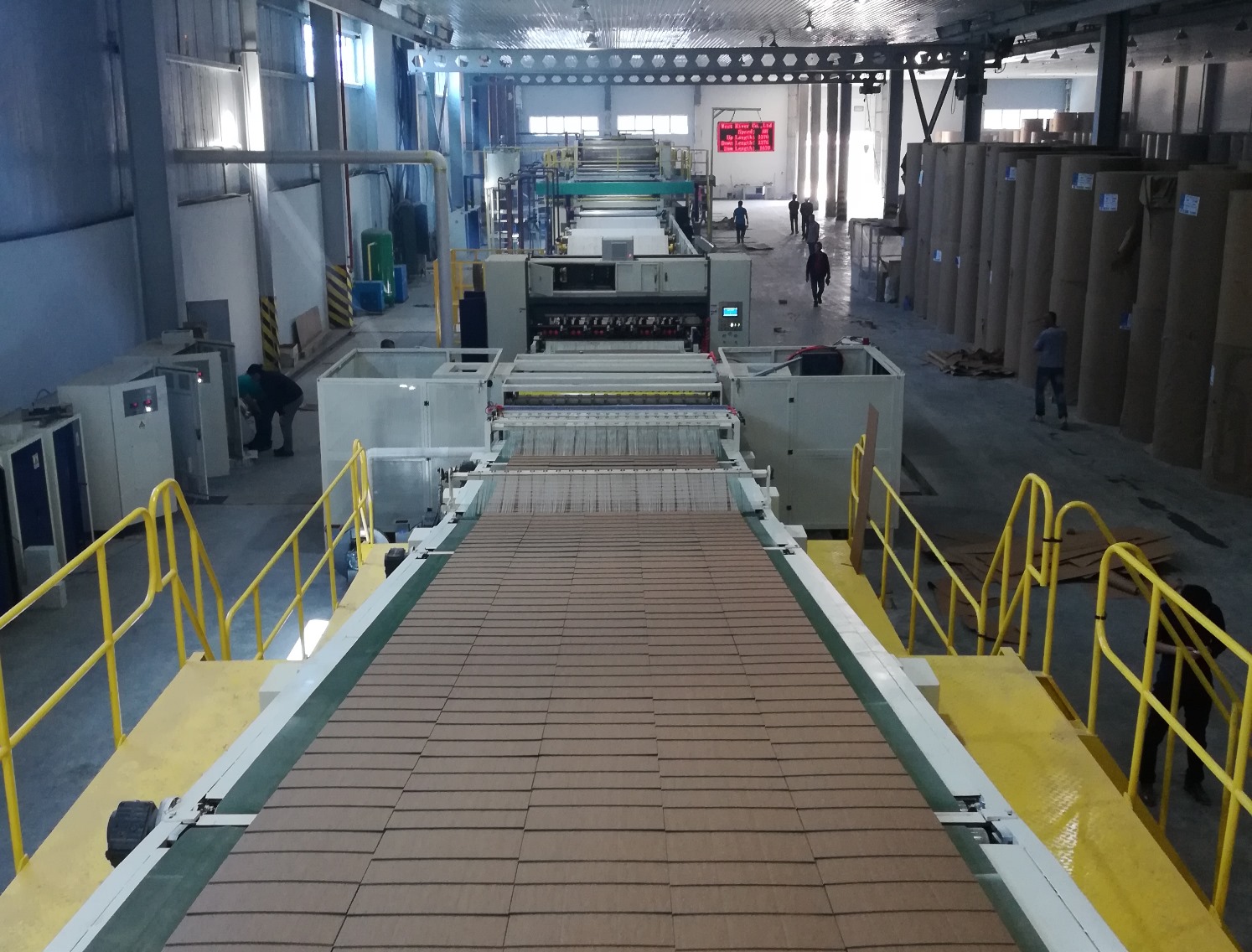

high speed 5 ply Corrugated cardboard production line/corrugator
machine
Main equippment list:
1. Mill roll stand (mechanical and hydraulic shaftless is
available)
2. Splicer(option, it is used for high speed production line)
3. Single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and
computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)
Main technology parameter:| Effective width | 1800mm |
| Design speed | 60-200m/min |
| Working speed | 0-200m/min |
| Steam pressure and consumption | Pressure: 1-1.3Mpa consumption: 2500-3200kg/h |
| Air pressure and consumption | Pressure: 0.8-1.0Mpa consumption: 1.3m³/min |
| Total power | About 200kw |
| Total length | About 80m(depend on base drawing) |
| Dimension | About 80m×4.3m× 4.5 m (L×W×H) |
| Model | Design Speed(m/min) | Economic Speed(m/min) | Working Width(mm) | Multi-ply Board |
| LUM-A-100 | 100 | 60-80 | 1400-2000 | 3/5/7 ply |
| LUM-B-150 | 150 | 80-120 | 1400-2200 | 3/5/7 ply |
| LUM-C-200 | 200 | 120-150 | 1400-2200 | 3/5/7 ply |
| LUM-D-300 | 300 | 150-200 | 1400-2200 | 3/5/7 ply
|
Hydralic mill roll stand
Technical Parameters
* Operation style of base paper stand: Electrically mechanical type
* Dia. of clip paper: Φ350mm - Φ1400mm
* Max. weight of one side: 2000kg
* Working pressure of air supply: 0.6-0.9 MPa
* Total power: 5.2kw
Structural Features
A. The symmetric structure can be installed with two bundles of
base paper at the same time used to change papers without halt.
B. This machine adopts the electrical driver to finish lifting up
or down, clamping, loosening and centering the base paper.
C. This machine adopts the pneumatic tension controller to adjust
the tensile force of base paper.
D. The head of clip paper adopts expansion style.
E. The tension control adopts pneumatic braking, which can also be
on-line control together with Paper Splicer.
| Max. working width | 1600mm |
| Max working steam pressure: | 1.0-1.3Mpa |
| Steam temperature | 160—210 centigrade |
| Power requirements: | 380V, 50Hz |
| Diameter of heating roller | 400mm |
Single Facer Machine
*Design speed: 80m/min.
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment
for hardness HRC58-60, surface plated with chrome treatment.
*corrugating roller: Dia.280mm with a drum.
*Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation
in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive
box, separating dynamic vibrations improve running stability, easy
and fast for maintenance
*Gluing roller: surface is embossed with netting design and chrome
plated.
*Adjustment of upper corrugated roller, pressure roller and glue
roller controlled by pneumatic system.
*With preheating and preconditioning rollers.
Double Glue Machine
Design Speed:200-250m/min
Glue Roller:268-320MM
Special line on the surface of the glue applicator roller,surface
ane hard chrome palting,even glue suply,low cost.Self-circulating
glue supplying system to avoid glue hardenning and to control glue
quantity ,keeping the glue goodquality and saving
Double Facer Machine
Man-machine interface PLC automatic control,automatic switching of
the heating plate number and size of the pressure to adapt to
different kind of paper flute perk intact.Heating plate is surface
grinded and chrome-plated,width 600mm.18-22pieces chose.Type of
rubber drive roll with vulcanized surface to avoid deviation.
Thin Slitter Scorer Machine
Automatic synchronize with the corrugated line and can also get in
line with manufacture management system.High compatibility. Three
types which can also be alternated with electrical system scroing
can also be computer controlled tith fine scring results.
Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was
built in 1999 and high quality enterprise,authorized by Hebei
Province Quality and Technical Supervision Bureau,ISO9001
international quality management system certificate and European CE
certificate.Our company also hold People's Republic of China
Customs Import and Export Right and Packaging Union Vice Chairman
Units Honor.Our company specializes in manufacturing
3-ply,5-ply,7-ply corrugated paperboard production line and carton
equipment R&D,manufacturing, and oversea's sales.It covers an
area of nearly 20,000 square meters,has a first-class R&D
team,technical engineers,excellent management talents and domestic
and foreign marketing team.Our products mainly export to
America,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi
Arabia,the United Arab Emirates,Samoa,South Africa and other 30
countries,etc.We have set our own branch in overseas market.Also,we
obtain good appraisement and high appreciation at home and
abroad.We uphold the "On good if water, hold world with virtue"
company culture and pursue "Don't miss every detail in order to
achieve customer satisfaction" business philosophy,and make
excellence of products! In decades year,company's products won the
"Hebei quality products" certificates,"Science and Technology
Progress Award", and has won the governmental honorable title of
the provincial and municipalities levels!
