    380V 50Hz Corrugated Carton Box Making Machine , Carton Production Line

    Ask Lasest Price
    Brand Name : Aodong
    Model Number : 5ply
    Certification : ISO
    Price : 15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 stes
    Delivery Time : 30 workdays
    • Product Details
    • Company Profile

    380V 50Hz Corrugated Carton Box Making Machine , Carton Production Line

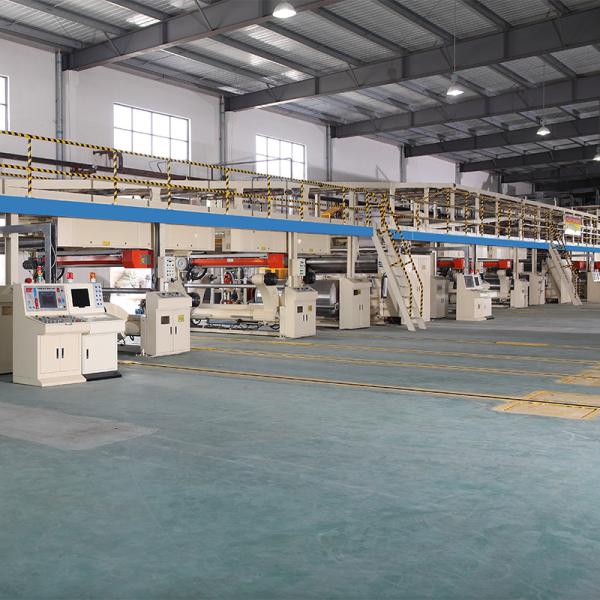

    high speed 5 ply Corrugated cardboard production line/corrugator machine


    No

    Item


    QtyRemarks
    1

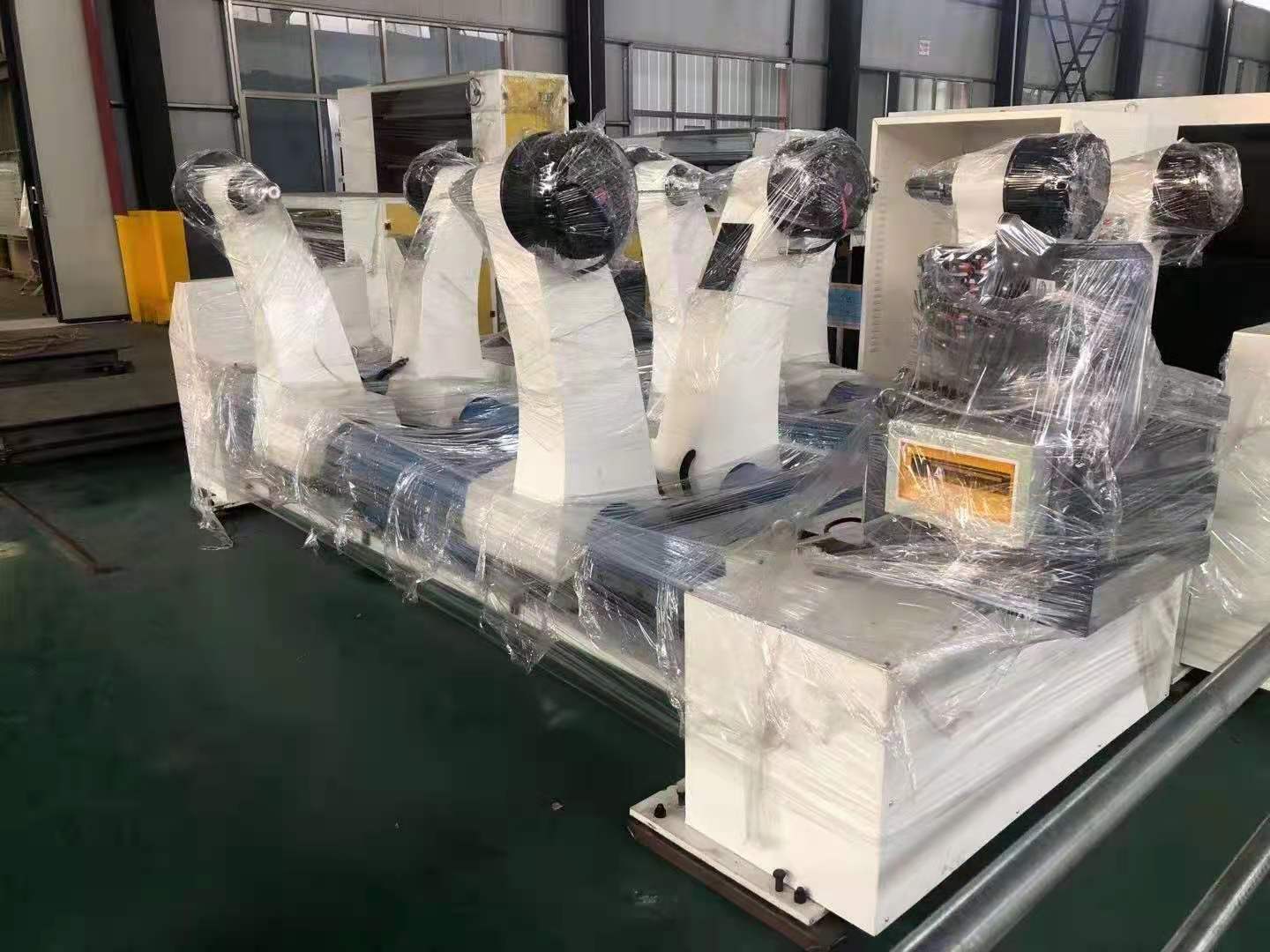

    Electric mill roll stand


    3set


    1.Expansion chuck

    2.Including paper feeding dolly,Each machine two sets

    3.Max weight:1.5ton

    4.Pneumatic butterfly disc brake

    5.Electric lifting,left and right moving,centring.

    2

    270 Adsorb type single facer


    1set


    1.Corrugated Roller is 270mm,Material 48CrMo.

    2.Adopt gimble drive.

    3.Flute type: A,B,C,F and E flute available

    4.Pneumatic gluing, automatic cycle for glue

    5.Manual adjustment of coating width, manual adjustment of coating gap


    3

    Conveyor bridge


    1set


    1.Adsorption type tension control,Electric motion deflection-corrected

    2.Improve feed chain drive

    4

    Pre-heater


    2set


    1.Main drive roller:400mm,Electric adjust corner
    5

    Two layer pre-heater


    1set


    1.Main drive roller:400mm, Manual adjust corner
    6

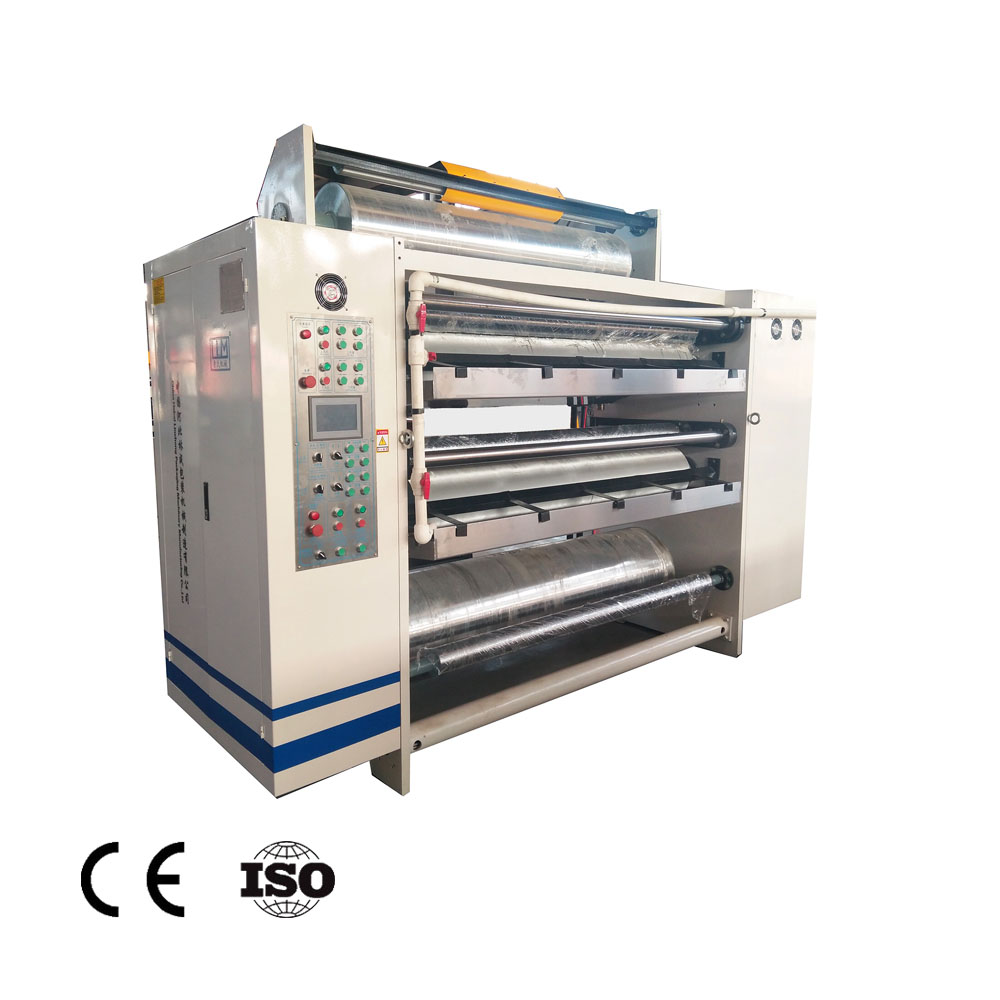

    Gluing machine

    (Light type)


    1set


    1.Glue roller diameter:215 mm, carved 25 line pit type checker

    2.Scraping plastic roller diameter:110mm,a rubber roller surface by grinding and hard chromium plating.

    3.Pressure roller diameter:110mm, pressure roller adopt pneumatic elevation, convenient operation.

    4.The upper pre-heater roller diameter:270mm,

    the lower pre-heater roller diameter:320mm

    5.Manual adjust glue gap.

    6.Chain is connected with the hot forging driven belt roller sprocket


    7

    Double Facer Machine


    1set


    1.Main structural channel steel: 300mm,

    Heating plates:600mm×9pcs

    2.Manual tighten cotton belt.Manual correction.

    3.The cold part:3.5m, intensive pressure roller, electric lifting device

    4.Main drive diameter is:500mm, Inveter motor:45kw

    8

    Thin blade Machine


    1set


    1.Manual adjust knife, 4 knives 6 scorers,

    alloy thin blade

    9

    NC cut-off Machine


    1set

    1.Straight cutter,VFD motor;

    Adopt German computer,Servo motor

    10

    Pneumatic system


    1set

    1.One0.6m3gasholder

    2.Air compressor by customer’s own.


    11

    Electric system


    1set1..Electric cabinet surface electrostatic spraying paint, wear resistance and beautiful
    12

    Gluing making system


    1set

    1.Centralism making glue, electric dispersion for glue.

    2.The pipe by customer’s own.

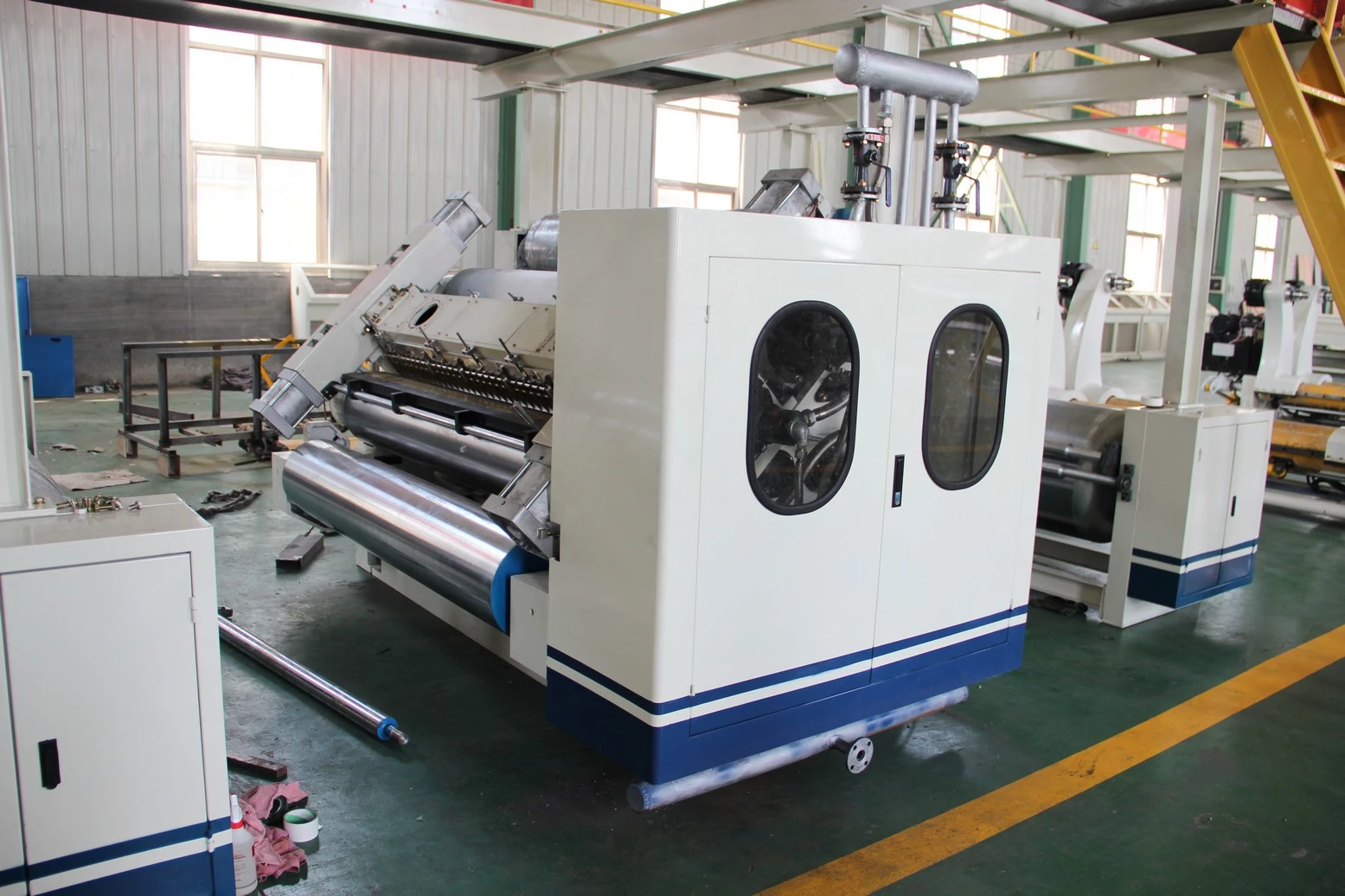

    Single Facer Machine



    Double Glue Machine


    Double Facer Machine

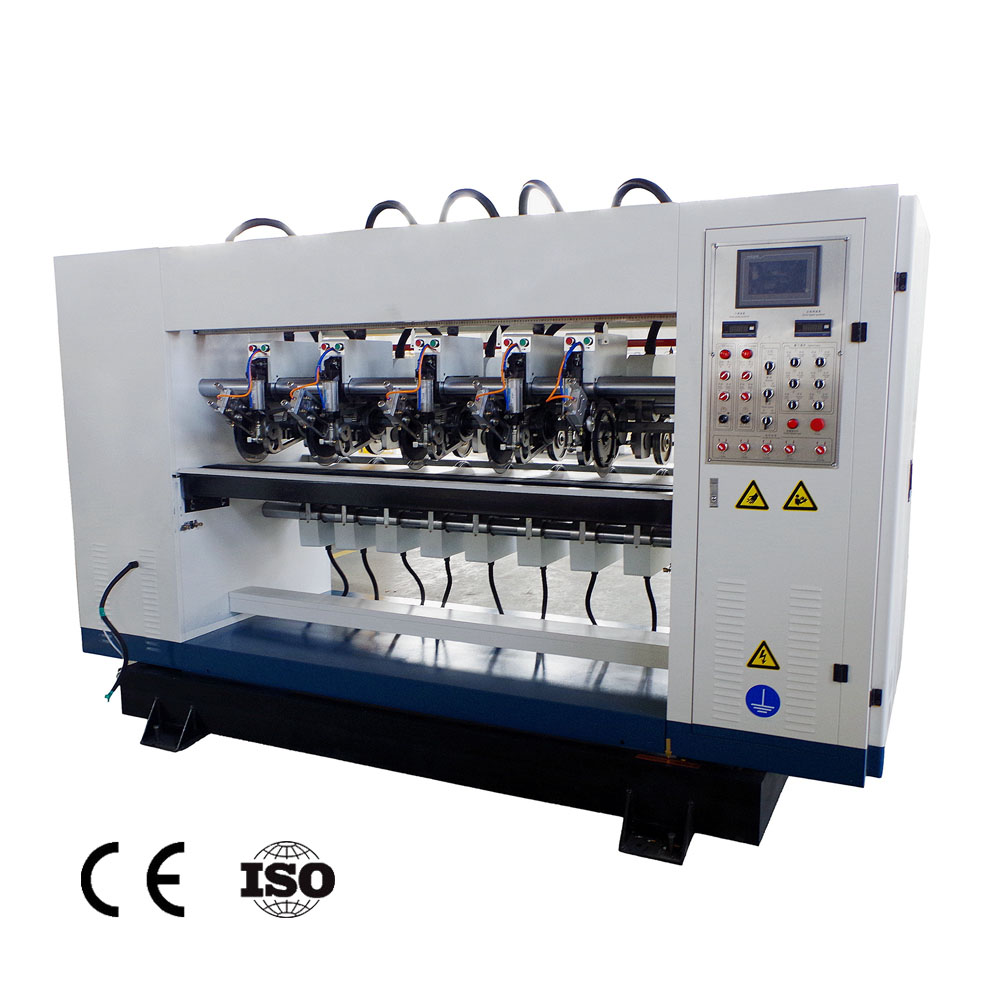

    Thin Slitter Scorer Machine

    Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was built in 1999 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.Our products mainly export to America,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.We uphold the "On good if water, hold world with virtue" company culture and pursue "Don't miss every detail in order to achieve customer satisfaction" business philosophy,and make excellence of products! In decades year,company's products won the "Hebei quality products" certificates,"Science and Technology Progress Award", and has won the governmental honorable title of the provincial and municipalities levels!
