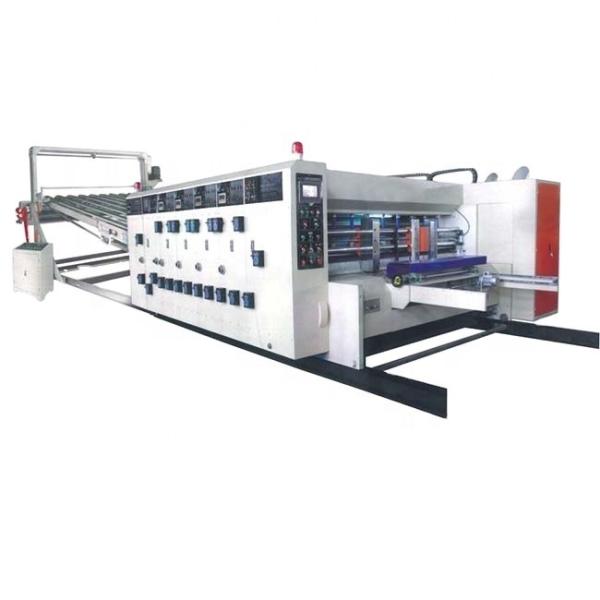

multi-colors corrugated carton cardboard printing slotting die
cutting machine
corrugated carton box printing slotting die cutting machine is
mainly used for print corrugated cardboard , This machine is
suitable for multi-color printing, mass production , with high
efficiency,easy operation, easy maintenance and safety standards,
greatly reducing the labor intensity of workers , reducing the
carton box production costs, improve production efficiency, is one
of the most important machines to making printed carton boxes, this
model cardboard printing machine is the most popular model among
our doemstic and foreign clients, the printing effect and
performance of it already been tested by many clients. You can also
chose multi-function corrugated carton box printing machines which
is added slotting function and die cutting function
Printing department
Printing roll (plate roll)
1. Diameter of ¢ 468 mm (with diameter of ¢ 480 mm).
2. High-quality steel surface grinding, axial reference scale, hard
chrome plating.
3. Do the balance correction, smooth operation, to adapt to
high-speed operation.
4. Ratchet fixed scroll plate, with hanging plate ditch, to adapt
to the rapid version of the installation convenient and quick.
5. Full version of hanging slot, for 10 mm hanging version of the
article
6. Printing roller axial manual traverse, the maximum movement of
10mm.
Printing press roll
1. Diameter of ¢ 155 mm.
2. The use of high-quality seamless steel pipe surface grinding,
dynamic balance correction, smooth operation, hard chrome plating
3. Printing pressure roller cross slider-type dial to manually
adjust the adjustment range of 0 to 12 mm. Adjustment does not
affect Gear clearance to ensure transmission accuracy.
| Moldel | 920 | 1224 | 1426 | 1628 |
| Max speed (pcs/min) | 300 | 250 | 180 | 160 |
| Feeding precision(mm) | ±1 |
| Min sheet size(mm) | 300*600 | 420*600 | 450*600 | 450*600 |
| Max sheet size(mm) | 860*2100 | 1150*2500 | 1350*2700 | 1500*2900 |
| Skip sheet size|(mm) | 1200*2100 | 1500*2500 | 1800*2700 | 2000*2900 |
| Max printing area(mm) | 900*2000 | 1200*2400 | 1400*2600 | 1600*2800 |
| Printing precision(mm) | ±0.5 |
| Plate thickness(mm) | 7.2 |
positive knife Min slotting distance negative knife | 130*130*130*130 | 140*140*140*140 | 150*150*150*150 |
| 230*65*230*65 | 230*70*230*70 | 240*75*240*75 |
| Max slot depth | 230 | 300 | 360 | 400 |
| increase the blade, increase the slot depth |
| Slotting precision(mm) | ±1 |
| Max die cutting size(mm) | | | | |
| Die cutting precision(mm) | ±1 |
Slotter Part
1. Slot knives 7mm use ally steel material after heat treatment ,grinding , teeth
model knives .
2. Slot phase adopt the gear structure 360degree electrical digital
number adjustable , running and stop all can all can adjust
3. Slot seat and creasing wheel and precreasing wheel transverse adopt
manual adjust
Die cutting
Wooden die roller (lower roll)
1. Outside diameter ¢ 430mm (without cutter).
2. Cast iron surface grinding, hard chrome plating, balance correction,
increase operational stability.
3. Die fixed screw hole spacing, axial 100mm; radial 18 equal parts.
Applicable tool height 25.4mm.
4. Wood template thickness: 16mm (for three-layer paperboard) 13 mm
(for five-layer
paperboard)
5. Diameter of ¢ 388.9mm, aniv cover 420mm
6. Quick change type pad, wear resistance, long life.
7. Cast iron surface grinding, hard chrome plated.
8. Balance correction, increase operational stability.
9. Pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm
swimming device. (Adjustable swimming speed)
