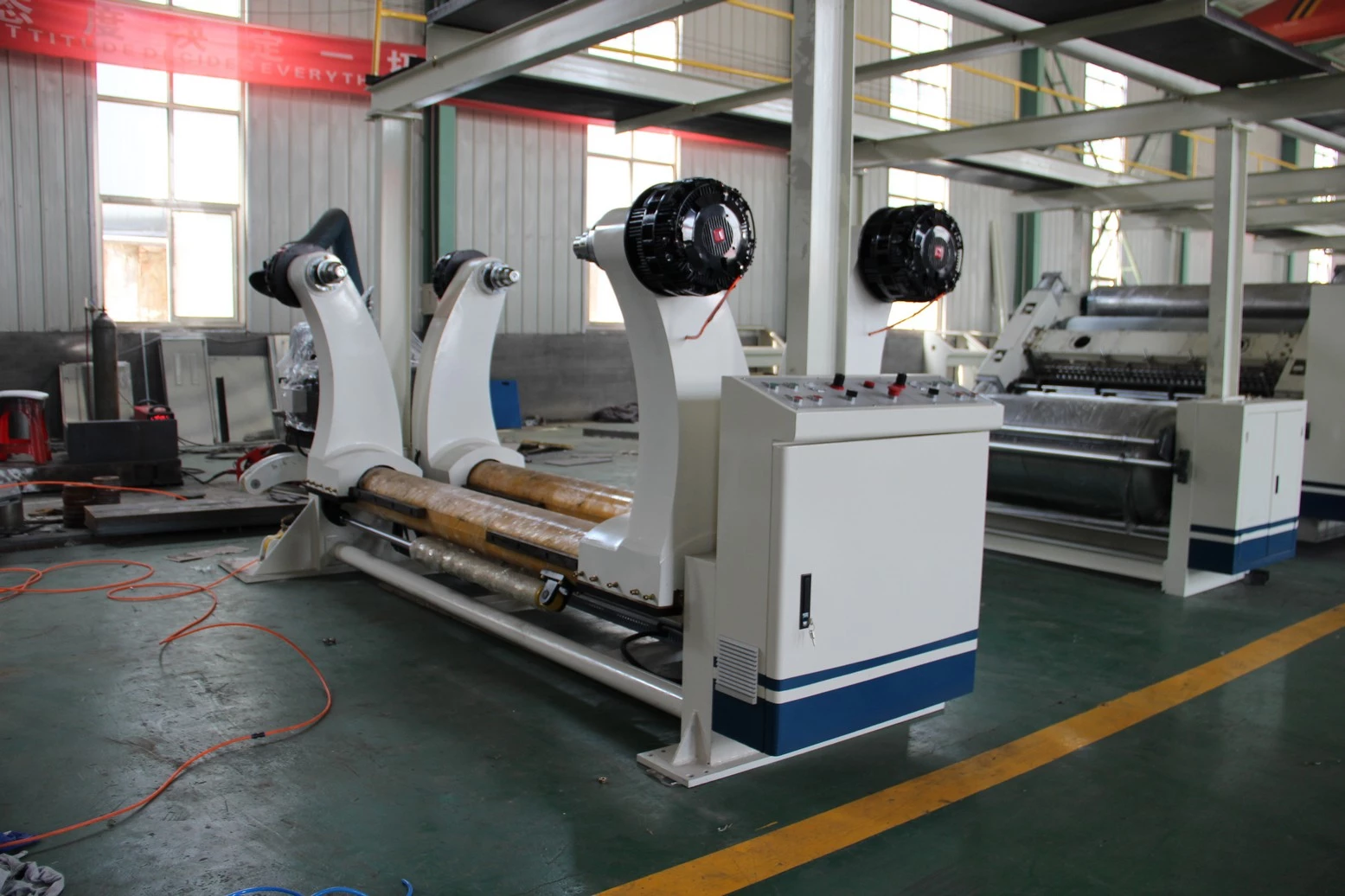

    Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure

    Ask Lasest Price
    Brand Name : AD
    Model Number : AD-mill roll stand
    Certification : ISO9001 CE
    Price : 500
    Payment Terms : D/P, T/T, Western Union
    Supply Ability : 1000sets
    Delivery Time : 200 days
    • Product Details
    • Company Profile

    Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure

    Hot selling product packaging machine mill roll stand new hydraulic stand/paper clip equipments

    Product details

    NameHydraulic Mill Roll Stand
    ApplicationCorrugated cardboard and carton box factory
    Automatic GradeAutomatic
    TypePackaging Line
    Driven TypeHydraulic
    Warranty1 Year
    Working pressure16-18 MPa
    CertificationCE ISO
    Air source working pressure0.4 - 0.8 Mpa
    Voltage380V/50HZ
    Product Keywordspackaging machine mill roll stand,new hydraulic mill roll stand,mill roll stand/paper clip machine

    Product Description

    Symmetrical structure, can carry two craft paper at one time, which can work without brake.

    Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic

    pressure. feeding craft / reel paper quickly.

    Brake: pneumatic brake

    Double Level Auto Expander, Expander head:3/4 inch Double Level.

    Specifications of stand:

    1,Reel Stand driven by hydraulic

    2,Kfat paper range

    Width: Max:2200mm Min:1000mm

    Diameter:Max:1500mm Min:350mm

    Max Weight:2500Kg(One side)

    3,Main roller dia:215mm

    4,Pneumatic Source Pressure(MPA):0.4---0.8Mpa

    5,Power: 380V 50Hz
