    380V 50Hz Corrugated Cardboard Making Machine , Corrugated Production Line

    Ask Lasest Price
    Brand Name : Aodong
    Model Number : 5ply
    Certification : ISO
    Price : 15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 stes
    Delivery Time : 30 workdays
    • Product Details
    • Company Profile

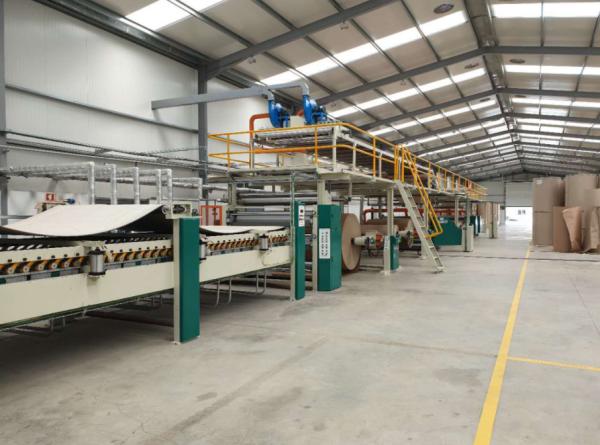

    380V 50Hz Corrugated Cardboard Making Machine , Corrugated Production Line

    high speed 2200mm automatic corrugated carton box paperboard making machine working line


    2200 type corrugated paperboard production line
    Effective width
    2200mm
    Design produce speed
    120m/min
    Economic speed
    80-120m/min
    Longitudinal separation accuracy
    ±1mm
    top paper
    100-250g/m2
    Cross-cutting precision
    ±1mm
    core paper
    100--250g/m2
    Electricity demand
    AC380V 50Hz 3PH
    corrugated paper
    100-150g/m2
    Steam requirement
    The maximum pressure 16kg/cm2
    Common pressure10-12kg/cm2
    use4000kg/Hr
    Compressed air
    The maximum pressure 9kg/cm2
    Common pressure4-8kg/cm2
    use1m3/min
    note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)

    1. Flutes combinations: A, C, B, E (or choose by the customer)

    2. Steam requirements:

    Steam cost: 4000 Kg/Hr Max pressure: 1.2Mpa

    Practical Pressure: 0.8-1.2Mpa

    3. Power supply: 410V 50Hz (Three phase four wire system)

    4. Total Power: About 250 kw

    Practical power cost: About 120kw

    5. Area of the Production Line covers: About 90m×6m×5m (The specific length is based on the foundation drawing)

    6. Corrugated board stacking direction: left or right according to the workshop to make sure the drive in left direction or right direction.
