3ply Corrugated Cardboard Making Machine Humanized Operation

Ask Lasest Price
Brand Name :	Aodong
Model Number :	5ply
Certification :	ISO
Price :	15000
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 stes
Delivery Time :	30 workdays

Add to Cart

Product Details
Company Profile

3ply Corrugated Cardboard Making Machine Humanized Operation

high speed 3 5 7 ply automatic paperboard making machine single facer corrugated cardboard carton box production machine line

Product Description:

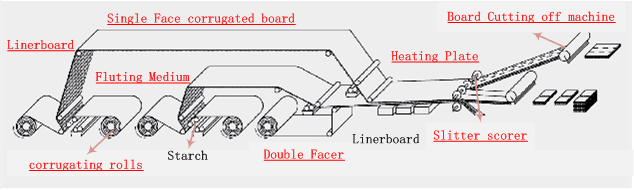

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.

Main equippment list
1. Mill roll stand (mechanical and hydraulic shaftless is available)
2. Splicer(option, it is used for high speed production line)
3. Single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)

Main technology parameter

Type:: Packaging Line

Packaging Material:: plastic, Paper, metal, wood

Application:: Food, Beverage, Commodity, MEDICAL, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Applicable Industries:: Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company

After Warranty Service:: Video technical support, Online support

Local Service Location:: Egypt, Peru, Mexico, Bangladesh

Showroom Location:: Egypt, Peru, Mexico, Bangladesh

Condition:: New

Packaging Type:: Cartons

Automatic Grade:: Automatic

Driven Type:: Electric

Voltage:: 220V/380V

Place of Origin:: Hebei, China

Brand Name:: kspack

Dimension(L*W*H):: Depends on the machine model

Weight:: 600000kgs

Certification:: CE ISO9001

After-sales Service Provided:: Online support, Video technical support

Warranty:: 1 Year

Key Selling Points:: Automatic

Marketing Type:: Ordinary Product

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Bearing, Gear, Gearbox, transmit roller

Product name:: Automatic 3 5 7 corrugated cardboard making line/corrugated machine

Bag type::: carton box

Material::: cast iron

Core paper::: 125-200g/m2

using area::: paperboard packaging line

Keywords:: Automatic 3 5 7 corrugated cardboard making line

Function:: produce the 3 .5 ply corrugated board

Application Fields:: produce the corrugated box

Speed:: 100-150 M/min

Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was built in 1999 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.Our products mainly export to America,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.We uphold the "On good if water, hold world with virtue" company culture and pursue "Don't miss every detail in order to achieve customer satisfaction" business philosophy,and make excellence of products! In decades year,company's products won the "Hebei quality products" certificates,"Science and Technology Progress Award", and has won the governmental honorable title of the provincial and municipalities levels!
