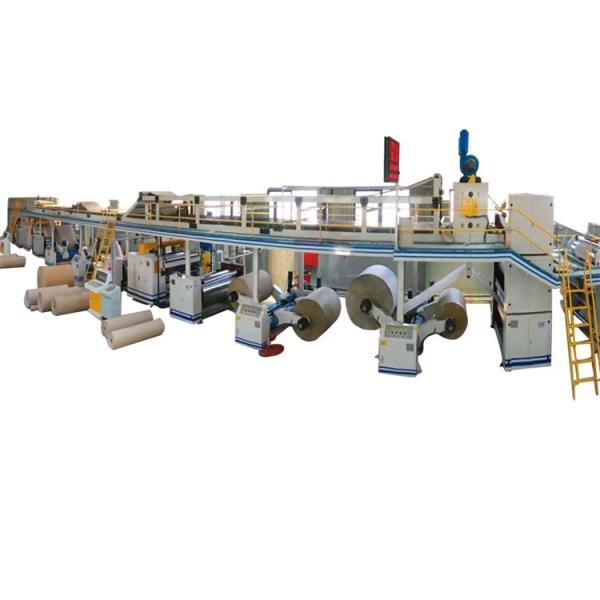

    High Speed 3 Ply Automatic Corrugated Box Plant Flute Cardboard Making

    Ask Lasest Price
    Brand Name : Aodong
    Model Number : LUM
    Certification : ISO9001
    Price : 150000-300000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1set/5days
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    High Speed 3 Ply Automatic Corrugated Box Plant Flute Cardboard Making

    Popular selling 3 ply carton box corrugated carton production line


    Product Description

    Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
    Please contact us for the full version of video.
    No.NameSetsComment
    1Mill roll standElectric mill roll stand , expansion dop top, pneumatioc brake
    2Single facervac-sorb,φ320 alloy roller ,cardan drive
    3Feeding paper bridgeElectric adjust deviation,adsorb tension
    4Second gluing machineConversion synchronous control
    5Triply pre-heater

    φ 800,electric wrap angle

    (including qualification certificate )

    6pre-heater

    φ 800,land type electric wrap angle

    (including qualification certificate )

    7

    Dry formed

    part

    520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )
    8

    Heat formed

    part

    Adopt up and down intensive roller ,length 8m
    9Feeding paper beltHigh quality carton belt , electric promote
    10Thin blade slitter scorer machine5 blade 8 line , electric Correct error , alloy blade
    11Corss cutter

    Computer control cutting cardboard length 500-9999mm;

    cutting cardboard precision ±1mm

    12Main driveMain power 25KW
    13Make paste systemBarrel type ,electric stir circulate glue design
    14Stand feeding paper carInclude slipping way
    15PumpElectric aeration
    16Electric systemOne Operate cabinet ,one sinlge facer 1 main drive
    17Steam systemNot including heat source and pipe
    18Gantry stackerBelt drive type
