    ISO9001 3 Ply Automatic Corrugated Box Plant

    Ask Lasest Price
    Brand Name : Aodong
    Model Number : LUM
    Certification : ISO9001
    Price : 150000-300000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1set/5days
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    ISO9001 3 Ply Automatic Corrugated Box Plant

    3 ply corrugated paperboard production line corrugated board machine

    Product Description

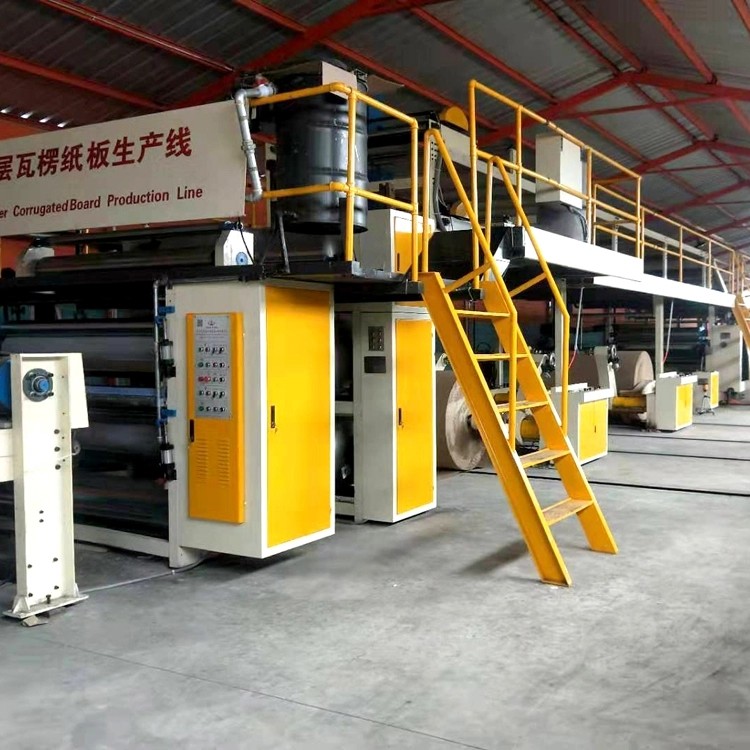

    Corrugated cardboard production line

    Corrugated cardboard production line is the professional advanced equipment for produce 3ply, 5ply, 7ply corrugated cardboard. The production line consists of mill rolls tand, liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double baker, slitter scorer machine, NC cut-off, conveyor and stacker, heating system. Air compression system, glue making system etc.

    We produce different grade machines according to customers’ demand of speed, function

    Main specification

    1. width:1400mm, 1600mm, 1800, 2000, 2200, 2500mm

    2. Design speed: 200m/min, 150m/min, 120m/min, 100m/min, 80m/min

    3. Heating method: steam


    Corrugated cardboard type and instruction

    Single wall corrugated cardboard (also called 3layer, 3ply board)

    1. Our most popular corrugated material used in boxes

    2. Available in a wide range of compression strength 125Iib to 275ib


    Double wall corrugated cardboard (also called 5layer, 5ply board)

    1. Combined of flute B and C, or A and B

    2. Extra padding can be add

    3. Excellent for stacking heavy item


    Double wall corrugated cardboard (also called 7layer, 7ply board)

    1. Composed of two layers of flute B/C and one layer of flute B

    2. Good resistance to crush during storage and transit.

    Flute type:

    Flute typeABCDEFGOthers
    Flute shapeUVUVUVUVUVUVUVAny
    Teeth number /300mm

    30

    ±2

    50

    ±2

    39

    ±2

    20

    ±1

    90

    ±10

    124

    ±10

    185

    ±12

    Customized
    Height of flute

    4.6~

    4.9

    2.6~

    2.9

    3.6~

    3.9

    7.2~

    7.5

    1.1~

    1.5

    0.7~

    0.8

    0.5~

    0.65

    Customized
    Shrink rate

    1.51~

    1.59

    1.36~

    1.42

    1.44~

    1.51

    1.45~

    1.49

    1.29~

    1.39

    1.22~

    1.26

    1.20~

    1.25

    Customized

    Technical parameter:


    Option:


    Detailed Images

    ISO9001 3 Ply Automatic Corrugated Box Plant
