    Intelligent 7.2T Automatic Flute Laminating Machine For Corrugated Carton

    Fully Automatic Intelligent High Speed Flute Laminating Machine


    Product Parameters

    Fully Automatic Intelligent High Speed Flute Laminating Machine

    Max size1450*1300mm
    Min size350mm*350mm
    Speed0-100m/min
    Total power12kw
    Overall size12.0m*2.40m*2.655m
    Weight7.2T

    Paper request

    Bottom paper : 350-800 800g/m2

    Max thickness: 10mm
    Face paper : 180-800 g/m2

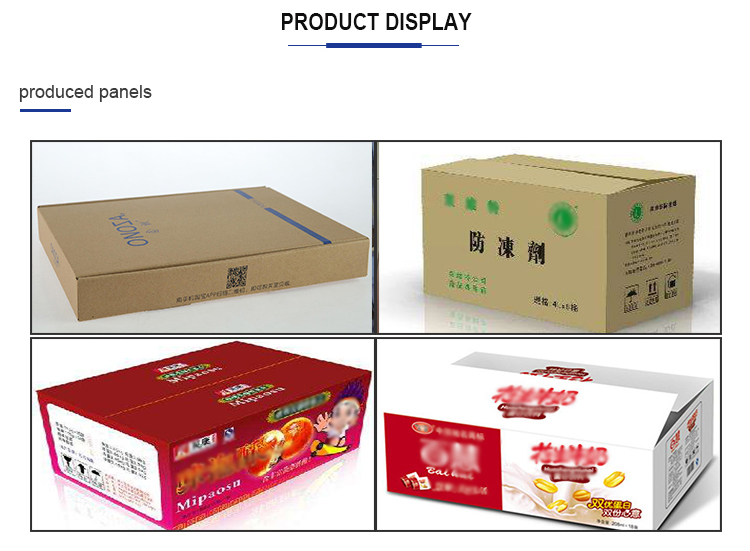

    Product Display


    Machine Character

    1,Adopt unique press spring type FRONT LAY design which low rate of break down And with intelligent control can laminate paper in right position.

    2,Adopt frequency convertor for speed regulation , PLC control , run and control rightly .

    3,Double servo control are used to make bottom paper send to front lay timely and accurately . to promise machine working accuracy when machine run.

    4,Glue roller and doctor roller work together to improve homogeneity of glue . will low cost glue for customer.

    5,Steel roller through balanced processing and testing, with tight assembly process effectively improve the mechanical stability, combined with the main transmission . adopts the timing belt drive, bottom paper suction feeder directly, effectively improve the precision and speed of mechanical operation.

    6,Glue level control system , automatic glue recycle , reduce worker labor.

    7,Material are used for this machine according to ISO 90001 . good quality material , key part like bearing is imported. Electric part used all world famous brand and China well-known brand.

    8,Self-develop high strength feeder compliant with high configuration electric system.

    9,Suit 150-450 gsm face paper with A,B,C,D,,E,F flute 3 ply, 5ply cardboard (thickness less than 8mm )
