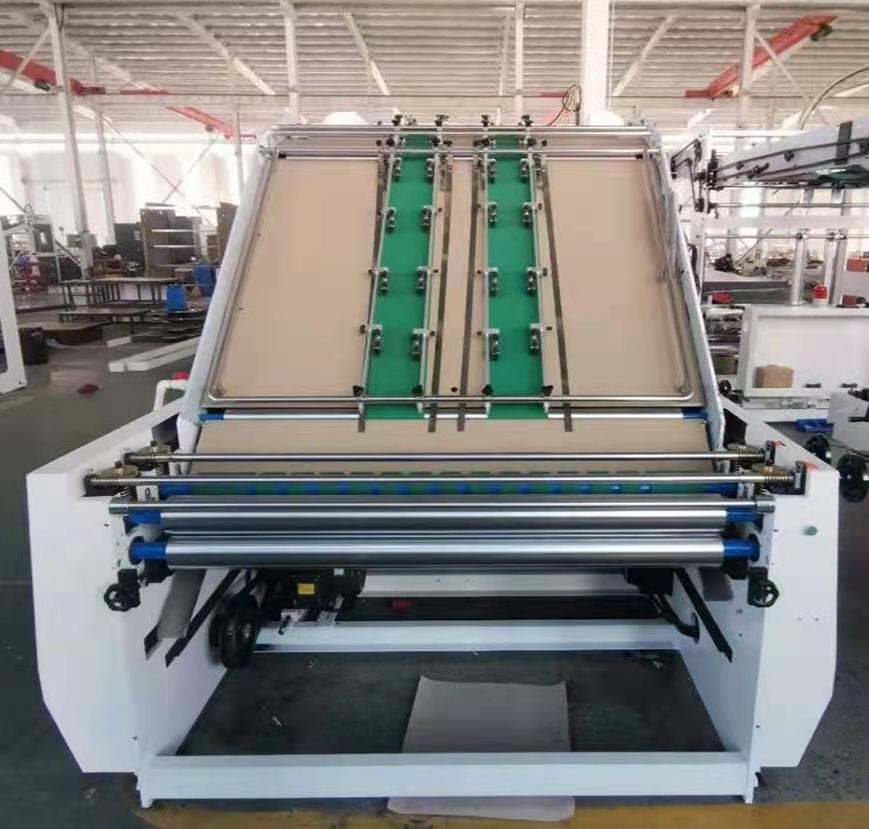

    33Kw 38kw Corrugated Box Lamination Machine , High Speed Flute Laminator

    Ask Lasest Price
    Brand Name : AODONG
    Model Number : AODONG-19
    Certification : ISO 9001
    Price : 2000-3000 usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15 sets per month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    33Kw 38kw Corrugated Box Lamination Machine , High Speed Flute Laminator

    Corrugated Cardboard Flute Lamination Machine Carton Box Laminating Machine Paperboard


    Parameters:


    ModelZGFM-1450ZGFM-1650
    Max size1450*1450mm1650*1650mm
    Min size450*450mm450*450mm
    Applicable paper150-800g/m2150-800g/m2
    Bottom paperA-F corrugated board, ≤10mmA-F corrugated board, ≤10mm
    Speed150m/min150m/min
    Sticker accuracy±1.5mm±1.5mm
    Power33Kw38kw
    Machine dimension22500*2200*2850mm22500*2300*2850mm

    The production line consists of a flute laminating machine and a fully automatic pile turning machine. The high speed flute laminating machine is suitable for the stick of paper and corrugated board. The motion control system is perfectly integrated with the servo correction system. Using the relative position of multiple sets of photoelectric induction paper, the servo motor on both sides of the control paper is independently compensated, and the position of the bottom paper is tracked by the paper. Make the paper and the bottom paper accurately positioned. The machine is easy to operate and simply input the size of the paper, the machine will be adjusted by itself.
    The fully automatic turning machine can complete the paper stacking, saving manpower and space, and solving the problem of bending deformation after the paper is attached.
