Product Application

Long lifespan 3ply 5ply carton boxes machine production

• Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.

Please contact us for the full version of video.

Main Features

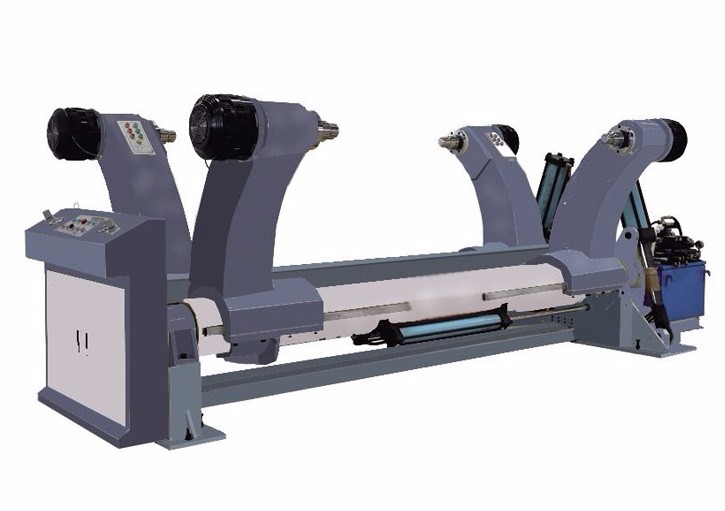

1) Mill roll stand: Electric mill roll stand,expansion dop top,pneumatioc brake.

2) Single facer: vac--sorb,dia320 alloy roller,cardan drive.

3) Feeding paper bridge:Electric adjust deviation,adsorb tension.

4) Second gluing machine:Conversion synchronous control.

5) Triply pre-heater:dia800,electric wrap angle(including qualification certificate)

6) pre-heater:dia800,land type electric wrap angle(incuding qualification certificate).

7) Dry formed opart:520mm*18 piecesot plate,adopt up and down intensive rpller(including qualification certificate)

8) Heat formed part:Adopt up and down intensive roller,length 8m.

9 ) Feeding paper belt:High quality carton belt,electric promote.

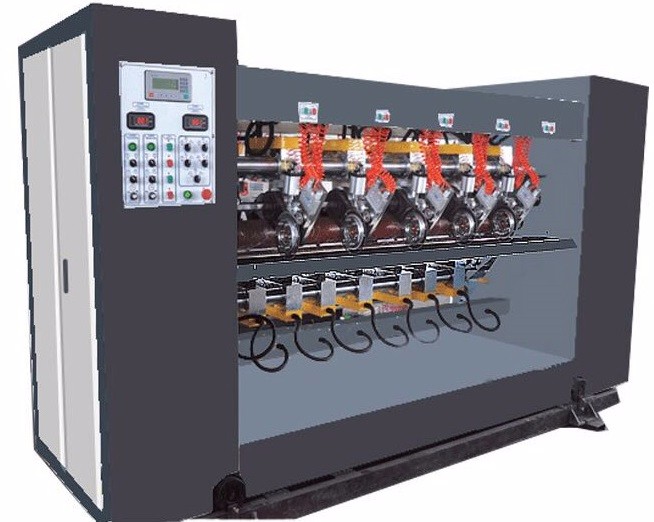

10) Thin blade slitter scorer machine:5 blade 8 line,electric correct error,alloy blade

11) Corss cutter:computer control cutting cardboard length 500---9999mm,cutting cardboard precision 1mm

12) Main drive:Main power 25KW

13) Make paste system:Barrel type,electric stir circulate glue design.

14) Electric system:One operate cabinet,one single facer 1 main drive.

15) Steam system:Not incuding heat source and pipe
